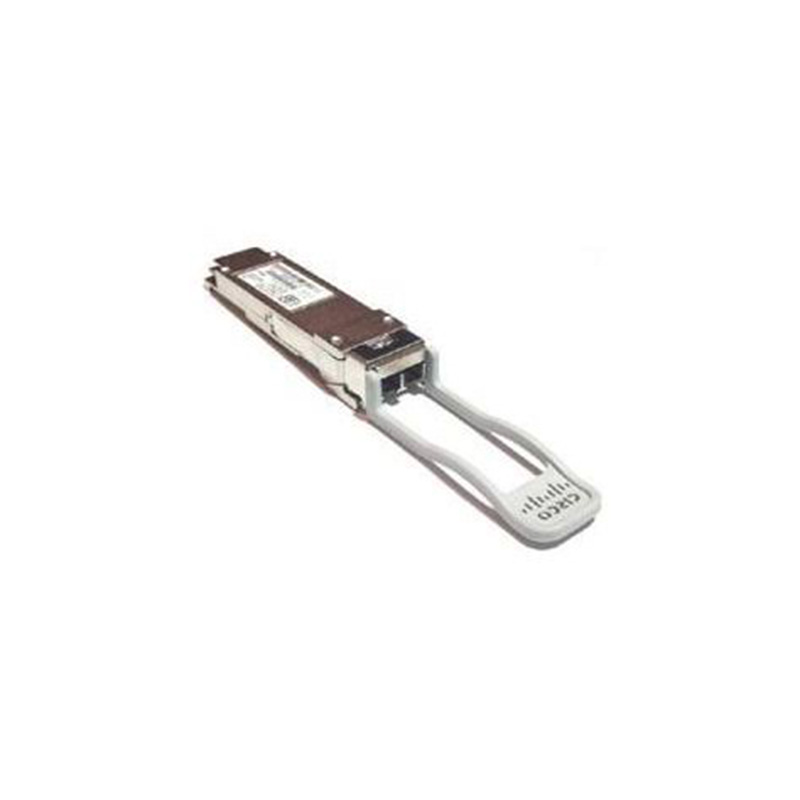

740-054053 JUNIPER NETWORKS 40G QSFP+ breakout into 4x10GBASE SR Ethernet Module
740-054053 Overview
The is a Juniper Networks QSFP+ optical transceiver designed to split a single 40G port into four independent 10G connections using 10GBASE-SR technology.It operates over multimode fiber (MMF) at 850nm, using parallel optics with an MPO-12 connector, where each lane carries a separate 10Gbps signal.This module is commonly used in data centers to connect a 40G switch port to four 10G devices, such as servers or access switches.It provides flexibility in port utilization while maintaining high bandwidth efficiency.
740-054053 Technical Specifications
JUNIPER NETWORKS 40G QSFP+ breakout into 4x10GBASE SR Ethernet Module
Manufacturer: Juniper
Manufacture Part Number: 740-054053
Type: QSFP+ Breakout Optical Transceiver
Data Rate: 40Gbps → 4 × 10Gbps
Interface: 4 × 10GBASE-SR
Wavelength: 850nm
Media Type: Multi-Mode Fiber (MMF)
Maximum Distance: Up to 100 m (OM3) / 150 m (OM4)
Connector: MPO-12 (PC/UPC)
Form Factor: QSFP+
Breakout: Yes (4×10G lanes)
