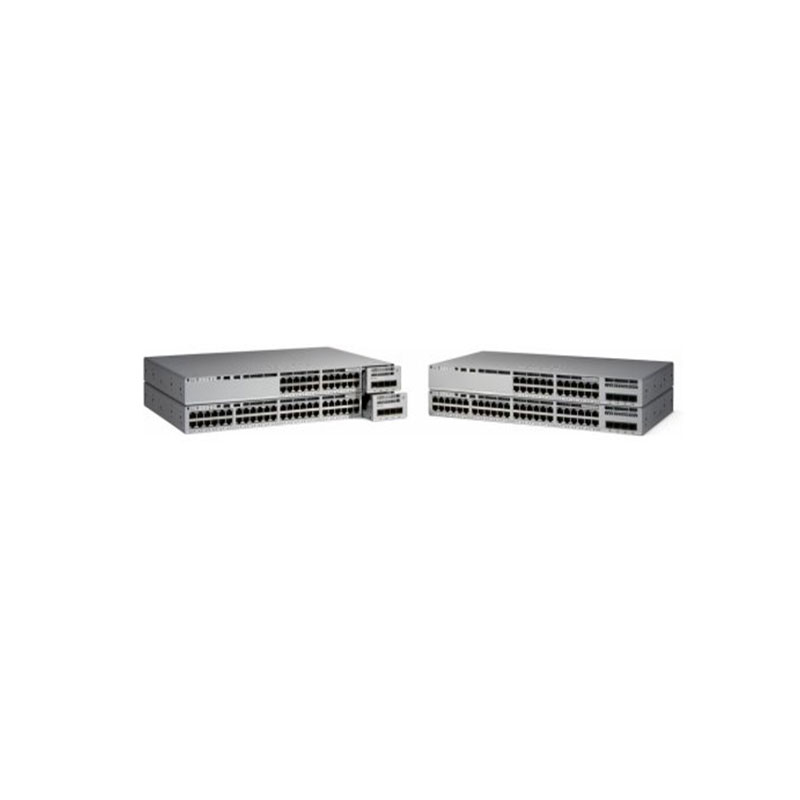

C9200L-24PXG-2Y-M Cisco C9200L 24-Ports 1G POE+ 2-Ports 25G Uplinks Managed Switch
C9200L-24PXG-2Y-M Overview
The Cisco Catalyst C9200L-24PXG-2Y-M is an enterprise-class Layer 3 managed switch designed for secure and scalable access-layer network deployments. It features 24 × Gigabit Ethernet ports with PoE+ support, including a mix of standard 10/100/1000Base-T and multi-gigabit ports for high-speed connectivity and power delivery to devices such as Wi-Fi 6/6E access points, IP cameras, and IoT equipment.The switch includes 2 × 25GbE SFP28 uplink ports for high-bandwidth backbone connectivity and network expansion. It supports advanced Layer 2 and Layer 3 features including VLANs, QoS, static and dynamic routing, link aggregation, ACLs, and enhanced security capabilities.
$8,075
C9200L-24PXG-2Y-M Technical Specification
Cisco C9200L 24-Ports 1G POE+ 2-Ports 25G Uplinks Managed Switch
Part Number: C9200L-24PXG-2Y-M
Brand: Cisco
Ports: 16 x 10/100/1000Base-T PoE+ RJ-45
Multi-Gig Ports: 8 x 1G/2.5G/5G/10G PoE+ RJ-45
Uplink Ports: 2 x 25GbE SFP28
Switching Capacity: 160 Gbps
Forwarding Rate: 119 Mpps
PoE Standard: IEEE 802.3af/at (PoE+)
PoE Power Budget: Up to 740W
Per Port Power: Up to 30W
MAC Address Table: 16K Entries
Jumbo Frame Support: 9KB
Management: Fully Managed
Layer Support: Layer 2/Layer 3
VLAN Support: Yes
