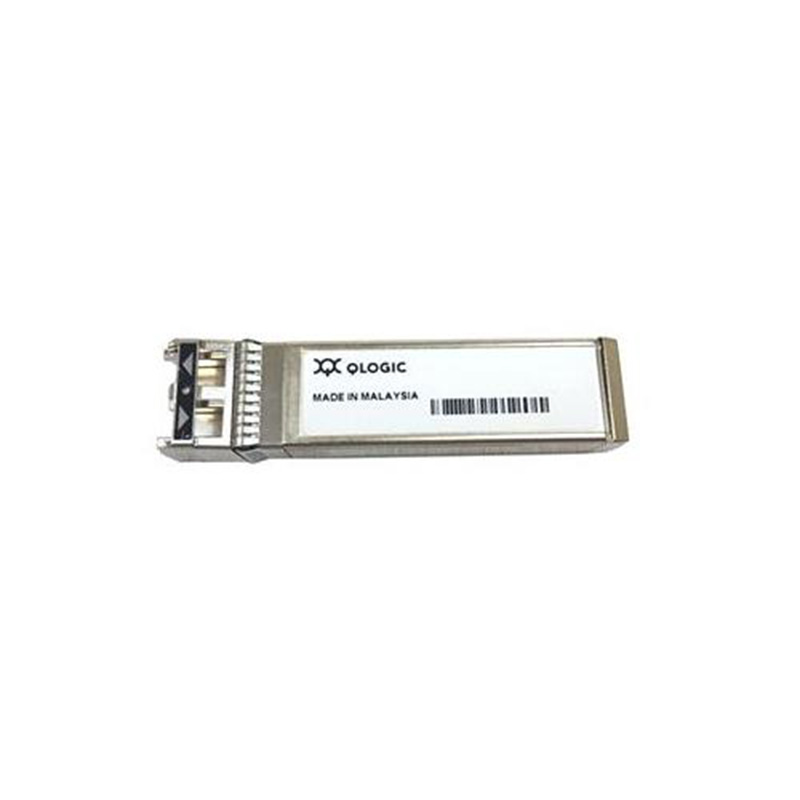

JSH-14SWAA1-QL Qlogic 16Gb/s SFP+ 850nm LC MMF Transceiver
Out of stock
JSH-14SWAA1-QL Overview
The QLogic-compatible 16Gbps Fibre Channel SFP+ optical transceiver, designed for high-speed Storage Area Network (SAN) environments. It operates at an 850nm short-wave wavelength over multi-mode fibre (MMF) and is ideal for short-range connections up to ~100m.This module features a duplex LC interface and uses a VCSEL laser transmitter, ensuring stable, low-latency optical communication between Fibre Channel switches, storage arrays, and host bus adapters. It supports multiple Fibre Channel speeds including 4G, 8G, 10G, and 16G, making it backward compatible with existing SAN infrastructure.
JSH-14SWAA1-QL Technical Specifications
Qlogic 16Gb/s SFP+ 850nm LC MMF Transceiver
Manufacturer: QLogic
Manufacture Part Number: JSH-14SWAA1-QL
Type: SFP+ Fibre Channel Optical Transceiver Module
Data Rate: Up to 16Gbps
Wavelength: 850nm
Media Type: Multi-Mode Fiber
Connector: Duplex LC
Form Factor: SFP+
Laser Type: 850nm VCSEL
Diagnostics: Digital Diagnostic Monitoring (DDM/DOM) Supported
Operating Temperature: 0°C to 70°C
