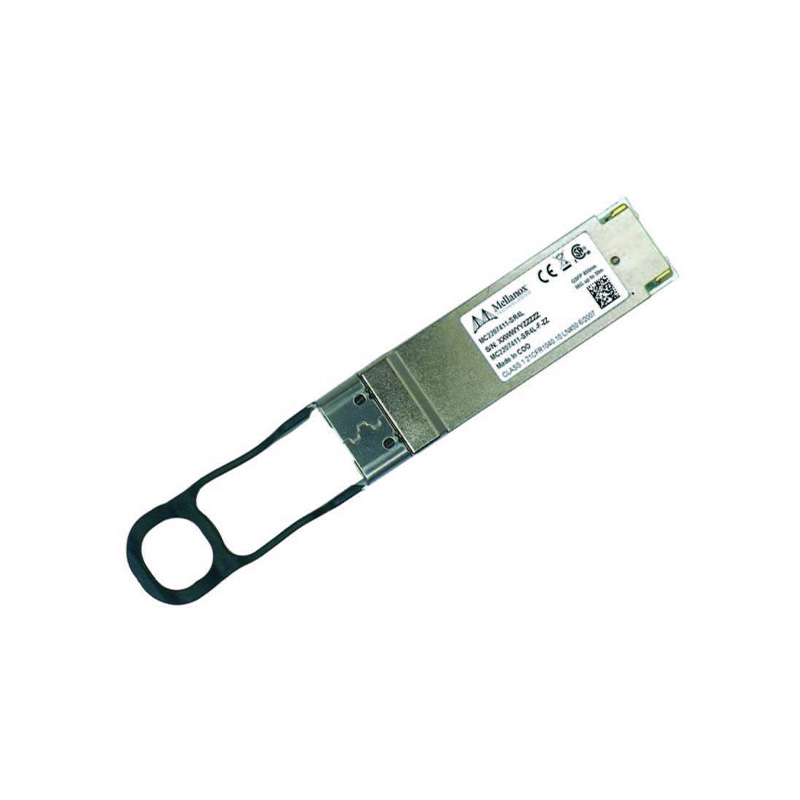

MC2207411-SR4L Mellanox 56Gbps 30m 850nm MPO Connector QSFP Transceiver Module
Out of stock
MC2207411-SR4L Overview
The Mellanox 56Gbps QSFP+ short-range optical transceiver module designed for high-performance computing (HPC) and InfiniBand networking environments. It operates at an 850nm wavelength over multi-mode fiber (MMF) and supports transmission distances of up to 30 metres, making it ideal for short-distance high-speed connections.This module uses an MPO/MTP connector and provides 4 parallel optical lanes, delivering a total bandwidth of 56Gbps (FDR InfiniBand). It is commonly deployed in Mellanox switches and network interface cards (NICs) for low-latency, high-throughput communication in clustered computing environments.
MC2207411-SR4L Technical Specifications
Mellanox 56Gbps 30m 850nm MPO Connector QSFP Transceiver Module
Manufacturer: Mellanox
Manufacture Part Number: MC2207411-SR4L
Type: QSFP+ Optical Transceiver Module
Data Rate: Up to 56Gbps (FDR InfiniBand / 4×14Gbps lanes)
Wavelength: 850nm
Media Type: Multi-Mode Fiber (MMF)
Maximum Distance: Up to 30 metres
Connector: MPO/MTP (12-fiber)
Form Factor: QSFP+
Standards: InfiniBand FDR, QSFP+ MSA
Diagnostics: Digital Diagnostic Monitoring (DDM/DOM) Supported
Duplex: Parallel Optical (4 Tx / 4 Rx lanes)
Laser Type: 850nm VCSEL
