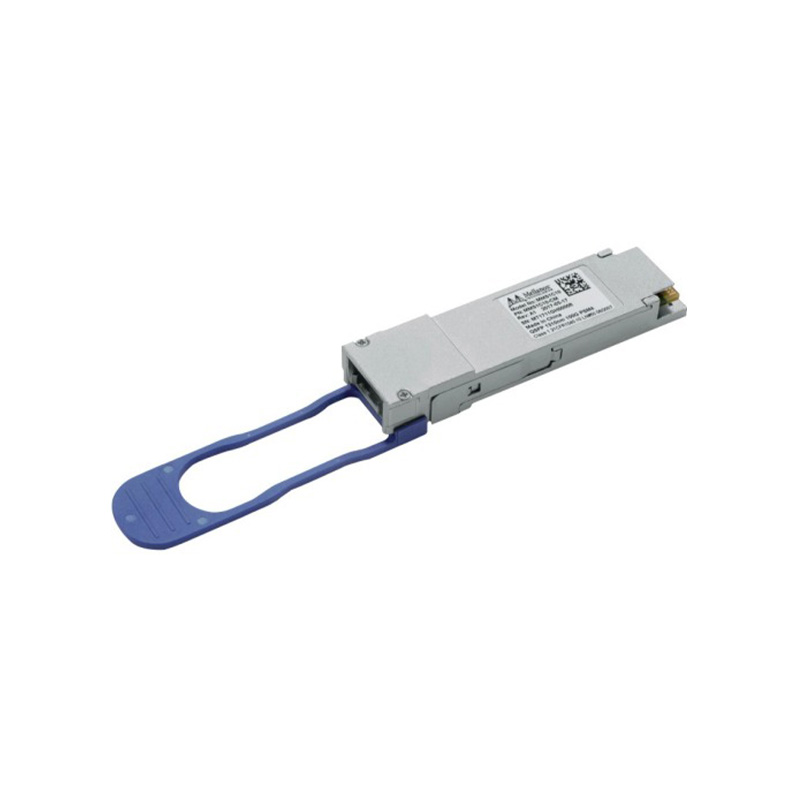

MMS1C10-CM Mellanox 100Gbps 100GBase-PSM4 Single-mode Transceiver Module
MMS1C10-CM Overview
The is a Mellanox (now NVIDIA) 100GbE QSFP28 PSM4 optical transceiver, designed for parallel single-mode fiber communication. It delivers 100Gbps throughput using 4 optical lanes, each running at ~25Gbps.This module operates at 1310nm wavelength and supports up to 500 meters over SMF, making it ideal for data center interconnects where medium reach is required.Unlike LR4 (which uses LC duplex), this PSM4 module uses an MPO connector with parallel fibers (4 Tx + 4 Rx), enabling efficient high-bandwidth transmission with simpler optics but requiring MPO cabling.
$58
MMS1C10-CM Technical Specifications
Mellanox 100Gbps 100GBase-PSM4 Single-mode Fiber 500m 1310nm MPO Connector QSFP28 Transceiver Module
Manufacturer: Mellanox
Manufacture Part Number: MMS1C10-CM
Type: QSFP28 Optical Transceiver
Data Rate: 100Gbps (100GBASE-PSM4)
Wavelength: 1310nm
Media Type: Single-Mode Fiber (SMF)
Maximum Distance: Up to 500 m
Connector: MPO (MTP)
Form Factor: QSFP28
Lanes: 4 × 25Gbps (parallel optics)
Standards: PSM4 MSA, SFF-8665 compliant
Power Consumption: < 3.5W
