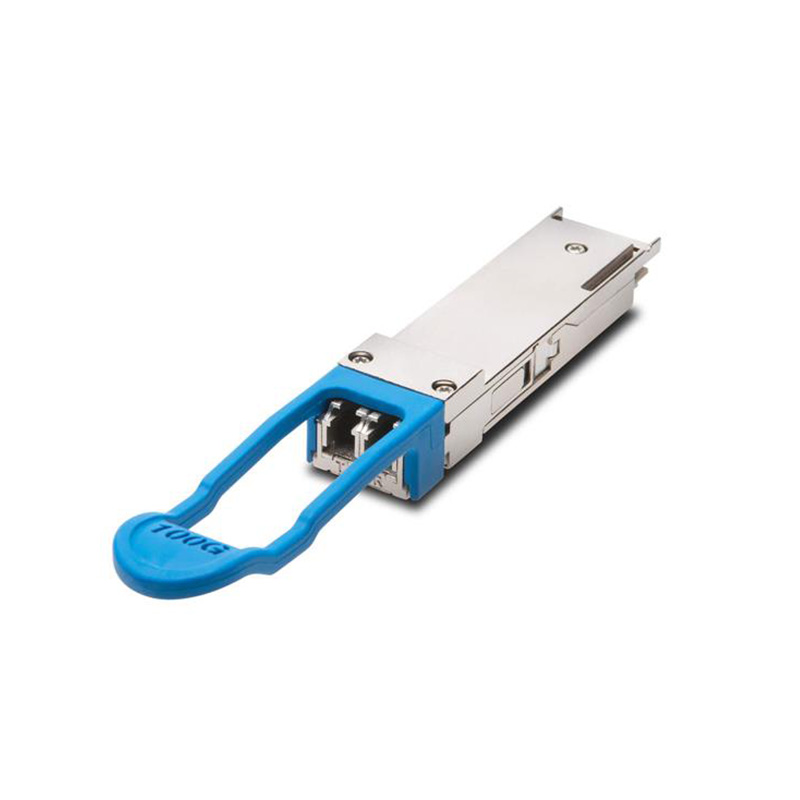

QSFP-100G-CWDM4 Arista 100Gbps 100GBase-CWDM4 Connector Transceiver Module
Out of stock
QSFP-100G-CWDM4 Overview
The from Arista Networks is a 100G QSFP28 optical transceiver designed for medium-range transmission over single-mode fiber. It uses four CWDM wavelengths (1271–1331 nm) to deliver 100Gbps over a standard duplex LC fiber pair.With a reach of up to 2 km, this module is ideal for data center interconnects, campus networks, and enterprise backbone links, offering a balance between cost and distance compared to SR4 (short range) and LR4 (long range) optics.
QSFP-100G-CWDM4 Technical Specifications
Arista 100Gbps 100GBase-CWDM4 Single-mode Fiber 2km 1310nm LC Connector QSFP28 Transceiver Module
Manufacturer: Arista
Manufacture Part Number: QSFP-100G-CWDM4
Type: QSFP28 Optical Transceiver Module
Data Rate: 100Gbps (100GBASE-CWDM4)
Wavelength: 1271 / 1291 / 1311 / 1331 nm (CWDM4)
Media Type: Single-Mode Fiber (SMF)
Maximum Distance: Up to 2 km
Connector: Duplex LC
Form Factor: QSFP28
Standards: IEEE 802.3ba / 802.3bm, CWDM4 MSA, QSFP28 MSA
Diagnostics: DDM/DOM Supported
Duplex: 4×25Gbps (CWDM multiplexed)
Power Consumption: ≤3.5W
