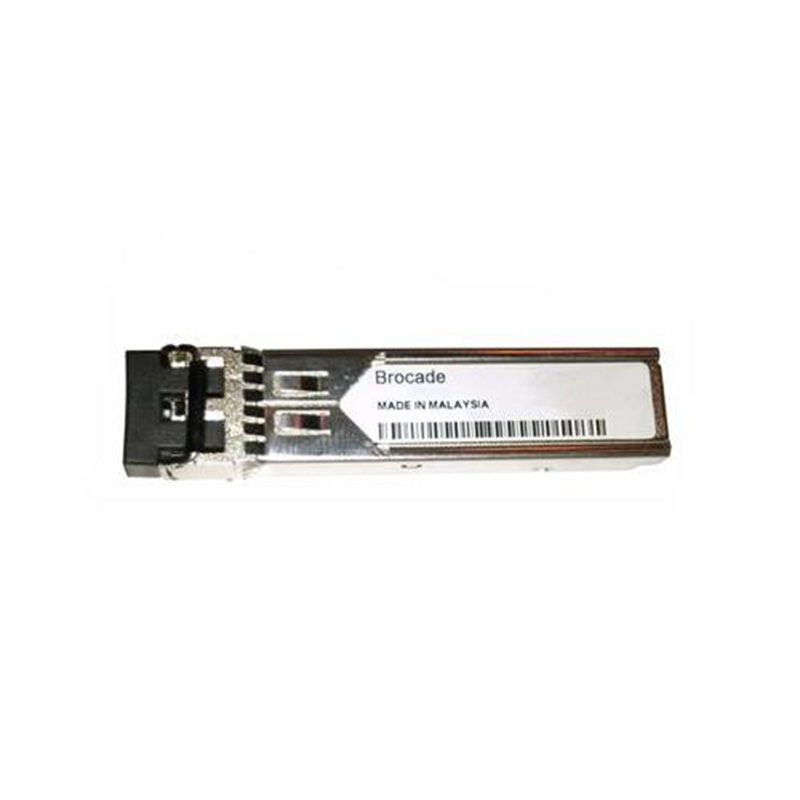

XBR-000213 Brocade 32Gb/s SFP28 100m 850nm LC MMF Transceiver
Out of stock
XBR-000213 Overview
The Brocade is a 32Gbps short-wavelength (SWL) Fibre Channel SFP transceiver, designed for high-performance SAN (Storage Area Network) environments. It operates at 850nm wavelength over multi-mode fibre (MMF) and supports distances up to 100m, making it ideal for short-range, high-speed data center connectivity.This module uses a duplex LC interface and supports multiple Fibre Channel speeds (8G, 16G, 32G) with auto-negotiation, ensuring backward compatibility with older infrastructure.
XBR-000213 Technical Specifications
Brocade 32Gb/s SFP28 100m 850nm LC MMF Transceiver
Manufacturer: Brocade
Manufacture Part Number: XBR-000213
Type: SFP+ / SFP28 Fibre Channel Optical Transceiver
Data Rate: Up to 32Gbps (supports 8G / 16G / 32G FC)
Wavelength: 850nm (Short Wavelength – SWL)
Media Type: Multi-Mode Fiber (MMF)
Maximum Distance: Up to 100 metres (OM4 MMF)
Connector: Duplex LC
Form Factor: SFP+ / SFP28 (32G FC)
Standards: Fibre Channel (8G/16G/32G), SFF-8472
Duplex: Full Duplex
Digital Diagnostics Monitoring (DDM/DOM): Supported
