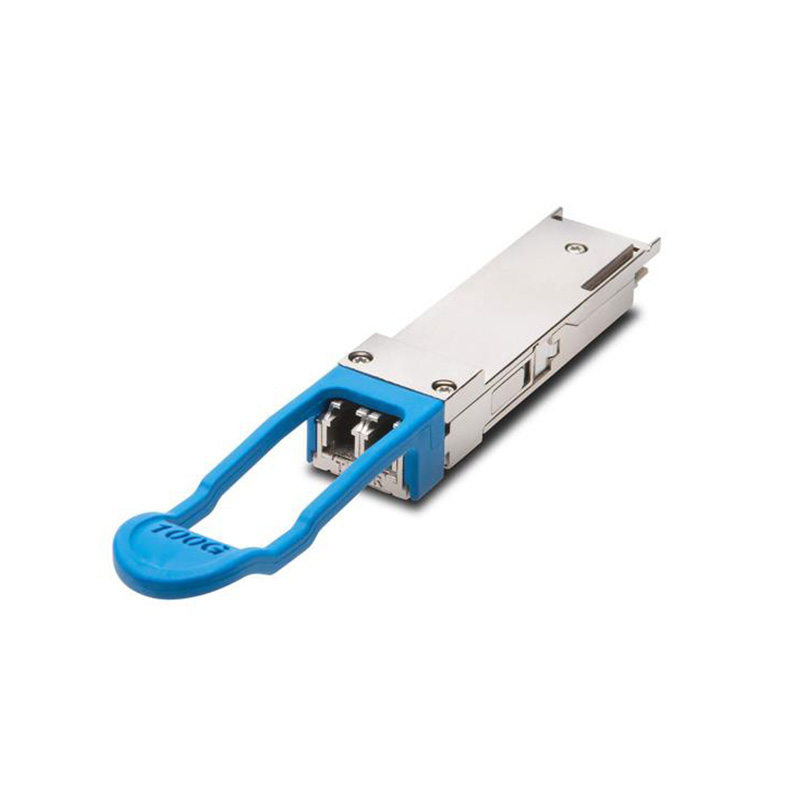

XVR-00068-01 Arista QSFP-100G-LR4 100GBASE-LR4 QSFP Optics Transceiver Module
XVR-00068-01 Overview
The Arista Networks is a 100GBASE-LR4 QSFP28 optical transceiver designed for long-range transmission over single-mode fiber (SMF).It uses LR4 technology, where 4 separate wavelengths (each 25Gbps) are multiplexed over a duplex LC fiber pair to deliver full 100Gbps throughput.With a reach of up to 10 kilometers, this module is ideal for data center interconnects, metro networks, and long-distance campus links where extended reach is required.
$388
XVR-00068-01 Technical Specifications
Arista QSFP-100G-LR4 100GBASE-LR4 QSFP Optics Transceiver Module
Manufacturer: Arista
Manufacture Part Number: XVR-00068-01
Type: QSFP28 Optical Transceiver Module
Data Rate: 100Gbps (100GBASE-LR4)
Wavelength: 4 × ~1310nm (CWDM lanes)
Media Type: Single-Mode Fiber (SMF)
Maximum Distance: Up to 10km
Connector: Duplex LC
Form Factor: QSFP28
Standards: IEEE 802.3ba (LR4), QSFP28 MSA
Diagnostics: DOM/DDM Supported
Duplex: 4×25Gbps wavelengths over 2 fibers
