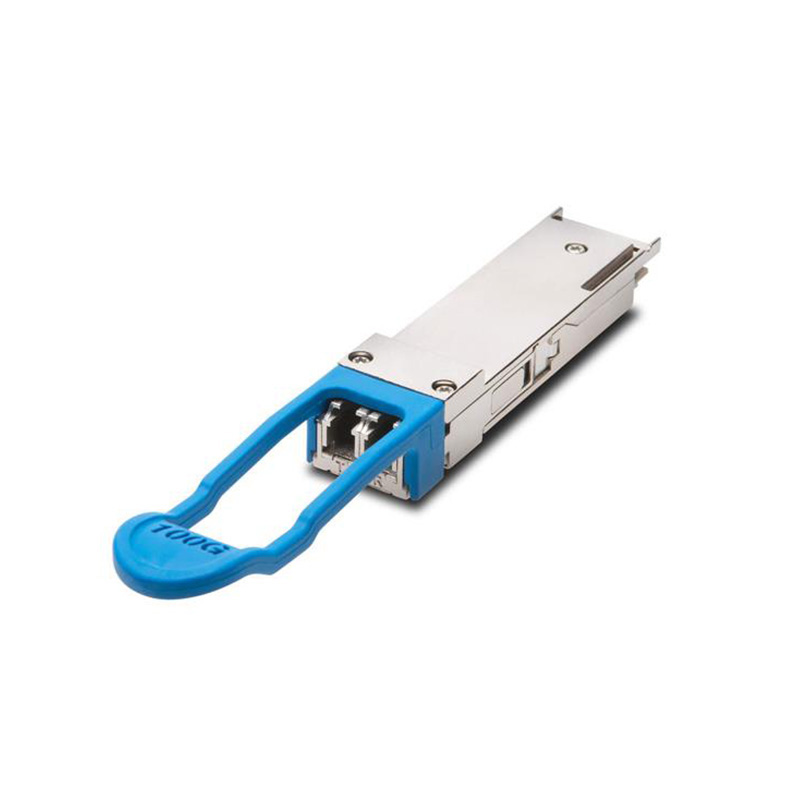

XVR-10079-20 Arista 100GBASE-PSM4 QSFP Optical Transceiver Module
Out of stock
XVR-10079-20 Overview
The Arista Networks is a 100GBASE-PSM4 QSFP28 optical transceiver designed for short-to-medium range transmission over single-mode fiber (SMF).It uses PSM4 (Parallel Single Mode 4-lane) technology, where 4 separate optical lanes (each 25Gbps) are transmitted over parallel fibers, delivering full 100Gbps throughput.Unlike duplex optics (like CWDM4 or DR), this module requires an MPO-12 connector and uses multiple fibers (typically 8 fibers: 4 Tx + 4 Rx) instead of just 2.
XVR-10079-20 Technical Specifications
Arista 100GBASE-PSM4 QSFP Optical Transceiver Module
Manufacturer: Arista
Manufacture Part Number: XVR-10079-20
Type: QSFP28 Optical Transceiver Module
Data Rate: 100Gbps (100GBASE-PSM4)
Wavelength: 1310nm
Media Type: Single-Mode Fiber (SMF – Parallel)
Maximum Distance: Up to 500 meters
Connector: MPO-12 (parallel fiber)
Form Factor: QSFP28
Standards: IEEE 802.3bm (PSM4), QSFP28 MSA
Diagnostics: DOM/DDM Supported
Duplex: Parallel 4×25Gbps lanes (8 fibers total)
Power Consumption: ~3.5–5W (typical range)
