0TS2510 Western Digital Ultrastar 61.44TB PCI E NVMe 4.0 Solid State Drive
0TS2510 Overview

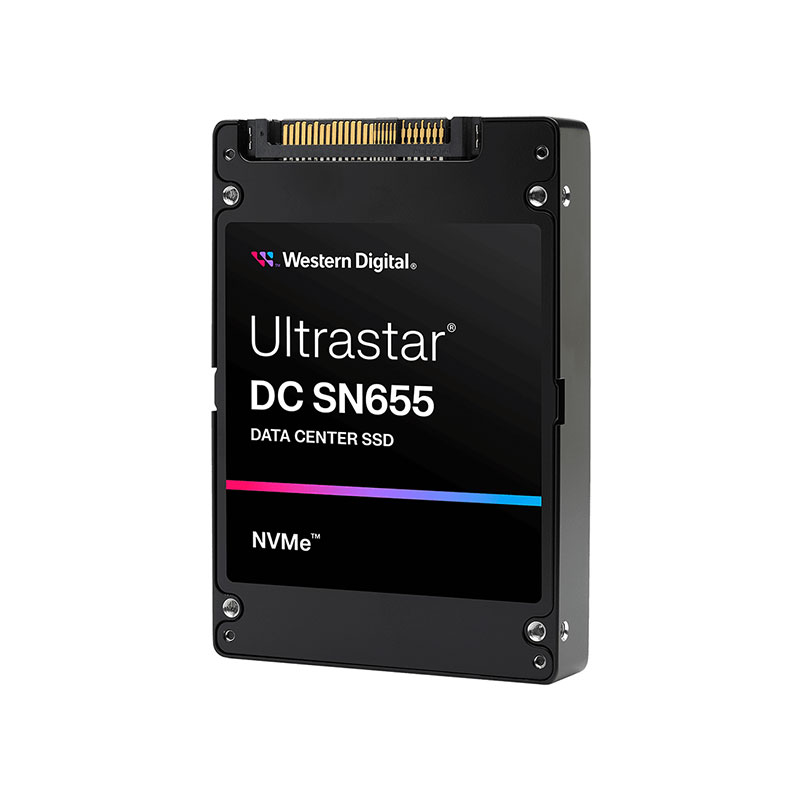

The Western Digital Ultrastar DC SN655 61.44 TB SSD (model 0TS2510) is a high-capacity enterprise-grade NVMe solid-state drive designed for read-intensive data-center and server storage workloads. It uses a PCIe 4.0 ×4 NVMe 1.4 interface in a U.3 2.5-inch (15 mm) form factor, making it compatible with hot-swappable enterprise drive bays and high-density storage systems. The drive delivers strong performance with up to around 4,300 MB/s sequential read and 3,150 MB/s sequential write speeds, and up to about 890,000 IOPS random reads, providing fast access to large datasets in demanding applications. Read-intensive classification with 1 Drive Write Per Day (1 DWPD) endurance makes it suitable for workloads where data reads dominate.
$31,130
0TS2510 Technical Specifications
Western Digital Ultrastar DC SN655 61.44TB PCI Express NVMe 4.0 U.3 ISE Solid State Drive
Manufacturer : Western Digital
Manufacturer Part Number : 0TS2510
Storage Capacity: 61.44 TB
Internal solid state drive
Enterprise / data center class
ISE (Integrated Security Encryption) support
Interface & Form Factor
PCI Express 4.0 x4
NVMe 1.4 protocol
U.3 form factor
2.5-inch drive
15 mm height
NAND & Technology
3D TLC NAND
Enterprise reliability features
Power-loss data protection
Performance
Sequential read speed up to ~4300 MB/s
Sequential write speed up to ~3150 MB/s
Random read performance up to ~890,000 IOPS
Random write performance up to ~29,000 IOPS
Endurance & Reliability
Read-intensive endurance (1 DWPD)
MTBF ~2.5 million hours
Designed for continuous data center operation
Power & Environment
Typical active power ~16–20 W
Operating temperature range ~0 °C – 70 °C
Physical
2.5-inch U.3 SSD
15 mm height
