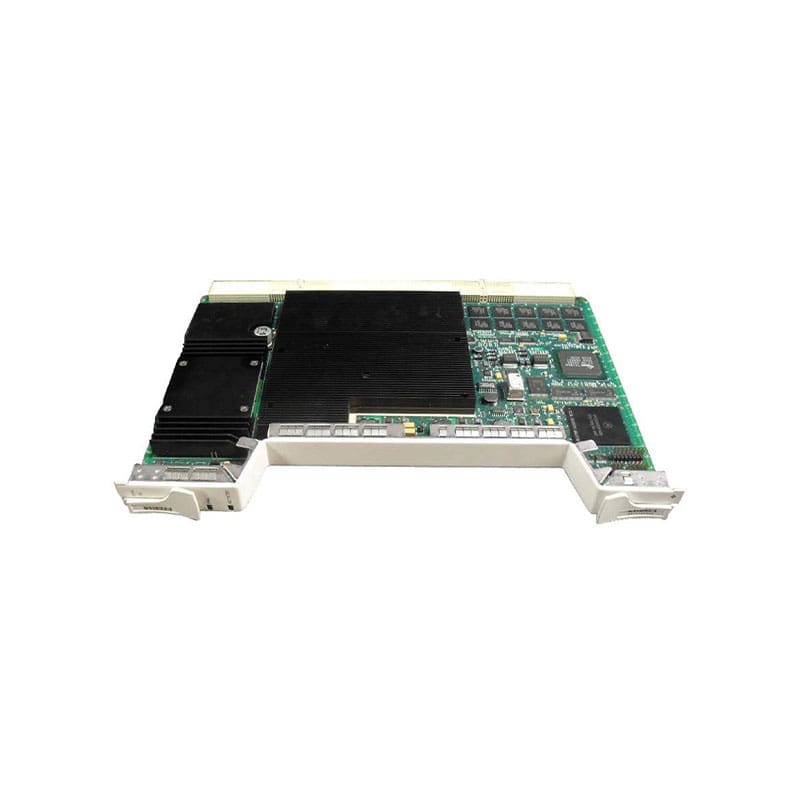

15454-XC-VXC-10G= Cisco Cross Connect Card Expansion Module
15454-XC-VXC-10G= Overview
Cisco Cross Connect Card Expansion Module. This Cisco ONS 15454 60G/5G High-Order/Low-Order XC-VXC Cross-Connect Card (XC-VXC) increases the Cisco ONS 15454’s virtual tributary (VT) 1.5 and VC-12 switching matrixes by a factor of four, facilitating greater support for grooming DS-1 and E1 services and low order members of virtual concatenation (VCAT) groups. The XC-VXC card operates in a protected 1:1 configuration, helping enable carrier-class high availability and supporting errorless side switching.
$4,279
15454-XC-VXC-10G= Technical Specifications
Cisco Cross Connect Card Expansion Module
Manufacturer: CISCO DS HARDWARE DIRECT
Brand: Cisco
Product Line: Cisco
Model: Cross Connect Card
Packaged Quantity: 1
Line Properties
Line Rate: OC-192
Networking
Type: Expansion module
Form Factor: Plug-in module
Connectivity Technology: Wired
Data Link Protocol: SONET
Data Transfer Rate: 9953 MBps
Status Indicators: Active, Fail, Standby
Slot Required
Compatible Slots: 1 x expansion slot
Miscellaneous
Compliant Standards: CISPR 22 Class A, CISPR 24, cUL, EN55022 Class A, EN55024, FCC CFR47 Part 15, ICES-003, UL, VCCI
Dimensions & Weight
Weight: 1.98 lbs
Environmental Parameters
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Humidity Range Operating: 5 – 95%
