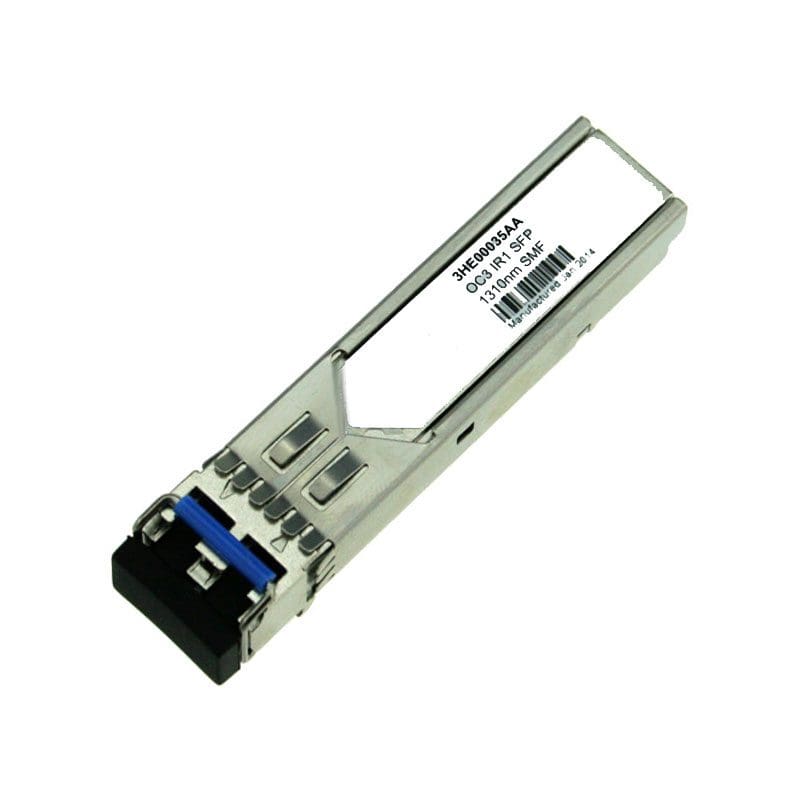

3HE00035AA Alcatel-Lucent SFP-IR-1/S-1.1 Optical Module
Out of stock
3HE00035AA Overview
Alcatel-Lucent SFP-IR-1/S-1.1 Optical Module for 1-port OC-3/STM-1 SONET/SDH, SFP LC, 1310nm 15km
$0
Out of stock
3HE00035AA Technical Specifications
Alcatel-Lucent SFP-IR-1/S-1.1 Optical Module
Form Factor: SFP
Data Rate: 155Mbps
Wavelength: 1310nm
Connector: LC Duplex
Cable Type: SMF
Reach Distance: 15KM
Operating Temperature Range: 0 ºC to 70ºC
Digital Optical Monitoring (DOM): Not Supported
Applications: OC-3 IR1
