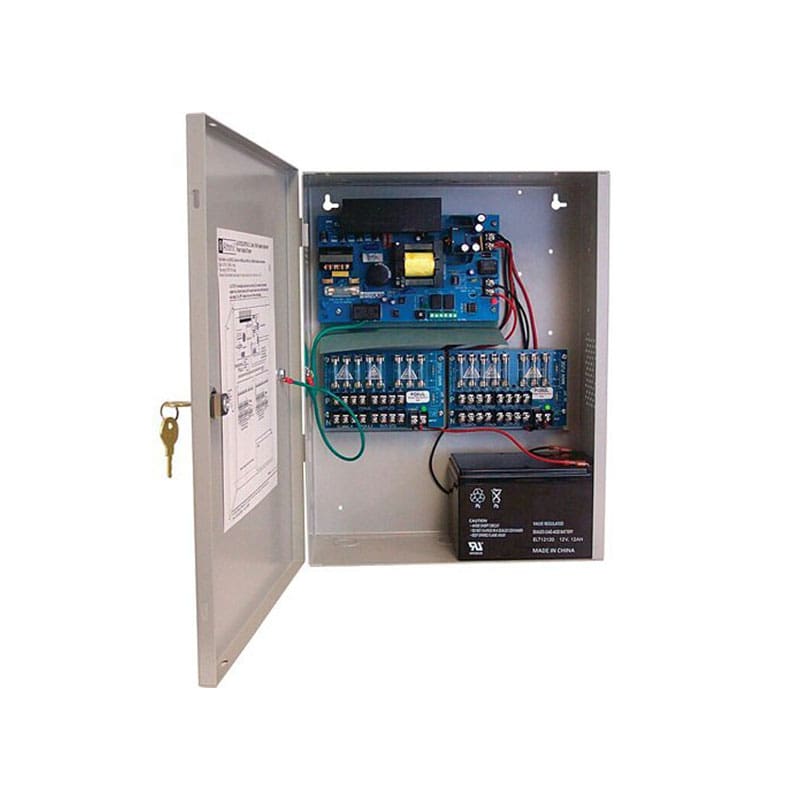

AL1012ULXPD16 Altronix 16 Output 12VDC Power Supply/Charger

AL1012ULXPD16 Technical Specifications

Altronix 16 Output 12VDC Power Supply/Charger

Manufacturer: Altronix
Manuf Part#: AL1012ULXPD16
Product Type: Proprietary Power Supply
Form Factor: Wall Mount , Enclosure
Product Model: AL1012ULXPD16
Input Voltage: 110 V AC
Output Voltage: 12 V DC
Environmentally Friendly: Yes

Output Voltage Detail: 12 V DC @ 10 A
Height: 15.5″
Width: 12.2″
Depth: 4.5″
Output Current: 10 A
Protection Type: Surge , Short Circuit , Thermal Overload

Packaged Quantity: 1
Limited Warranty: Lifetime
Input Voltage Type: AC
NDAA Compliant: Yes
Input Current: 1.9 A @ 110V
