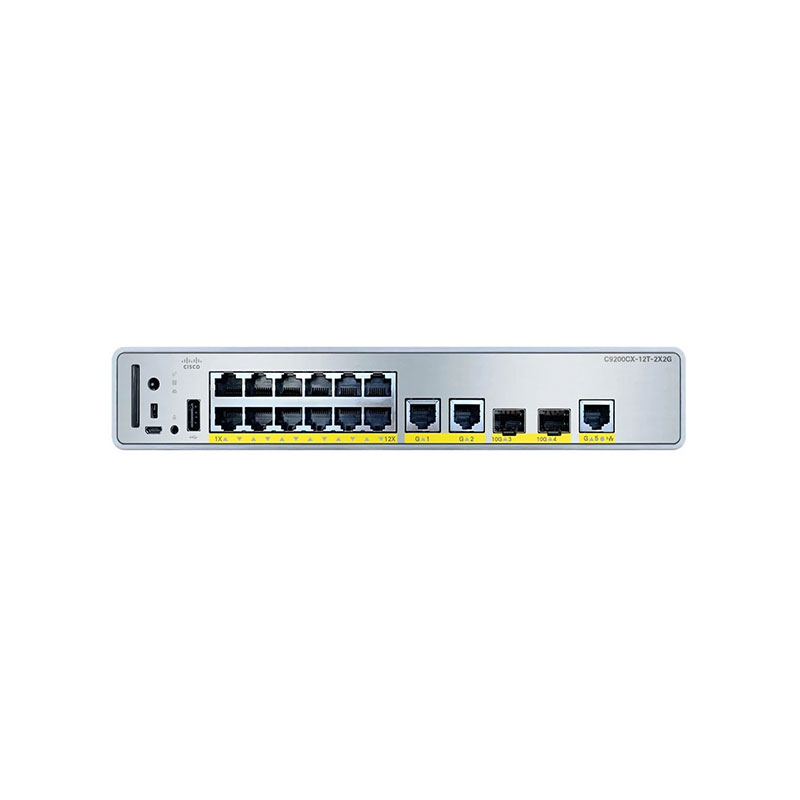

C9200CX-12T-2X2G-A Cisco Catalyst 9200CX 12-Port 1G, 2x10G and 3x1G Network Advance Switch
Out of stock
C9200CX-12T-2X2G-A Overview
The Cisco Catalyst C9200CX-12T-2X2G-A is a compact, high-performance enterprise-class Layer 3 managed switch that combines flexibility, scalability, and secure connectivity. Belonging to the Cisco Catalyst 9200CX Series, it is built to extend the Catalyst 9000 family benefits to small branch offices, retail, and space-constrained environments while maintaining full enterprise-grade features.This model provides 12x 1G RJ-45 Gigabit Ethernet ports for device connectivity, alongside 2x 10G SFP+ uplink ports and 2x 1G SFP uplink ports, delivering flexible and high-speed uplink options. It runs on Cisco’s advanced Network Essentials or Network Advantage software enabling advanced Layer 2 and Layer 3 routing, segmentation, automation, and enhanced security features.
C9200CX-12T-2X2G-A Technical Specifications
Cisco Catalyst 9200CX 12-Port 1G, 2x10G and 3x1G Network Advance Switch
Manufacturer Part Number: C9200CX-12T-2X2G-A
Brand Name: Cisco
Product Line: Catalyst 9200CX Series
Product Type: Managed Layer 3 Switch (Network Advantage)
Total Ports: 17
Port Type: 12 x 10/100/1000Base-T RJ-45 + 2 x 10 Gigabit SFP+ + 3 x 1 Gigabit SFP
PoE Support: No (non-PoE model)
Switching Capacity: 136 Gbps
Forwarding Rate: 101.78 Mpps
Layer Support: Layer 2 / Layer 3 (OSPF, RIP, EIGRP, BGP Lite)
VLAN Support: Up to 4,094 VLANs (802.1Q)
Spanning Tree Protocols: STP, RSTP, MSTP
Link Aggregation: IEEE 802.3ad LACP
Static & Dynamic Routing: IPv4 / IPv6 supported
Multicast Support: IGMP, PIM-SM
Stacking: Supported (Cisco StackWise-160)
Security: 802.1X, ACLs, DHCP snooping, MACsec 256-bit
QoS: Advanced QoS, traffic prioritization, DSCP
Management: Web UI, CLI, SNMP, NetFlow, DNA Center
