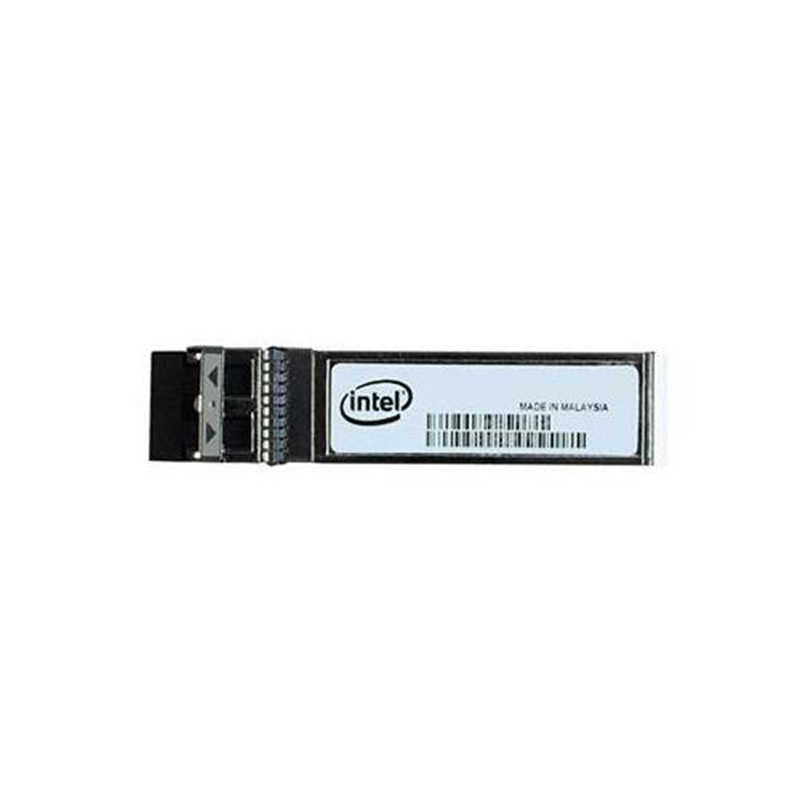

E65689-004 Intel 10Gbps 10GBase-SR Multi-mode Fiber Transceiver Module
Out of stock
E65689-004 Overview
The Intel is a 10GBase-SR SFP+ transceiver module designed for high-speed data transmission over multi-mode fiber. Operating at an 850nm wavelength, it supports distances of up to 300 meters, making it ideal for short-range connections within data centers, enterprise networks, and server-to-switch links.This module uses a duplex LC connector and requires two fiber strands for transmitting and receiving data. It supports both 10Gbps and 1Gbps operation, providing flexibility for mixed-speed network environments.
E65689-004 Technical Specifications
Intel 10Gbps 10GBase-SR Multi-mode Fiber 300m 850nm Duplex LC Connector SFP+ Transceiver Module
Manufacturer: Intel
Manufacture Part Number: E65689-004
Type: SFP+ Fiber Transceiver Module
Data Rate: 10Gbps (10GBase-SR) / 1Gbps (1000Base-SX – dual rate)
Connector: Duplex LC
Media Type: Multi-mode Fiber (MMF)
Wavelength: 850nm
Max Distance: Up to 300m (OM3 MMF)
Form Factor: SFP+
Standards: IEEE 802.3ae (10G), IEEE 802.3z (1G)
DDM/DOM: Supported
