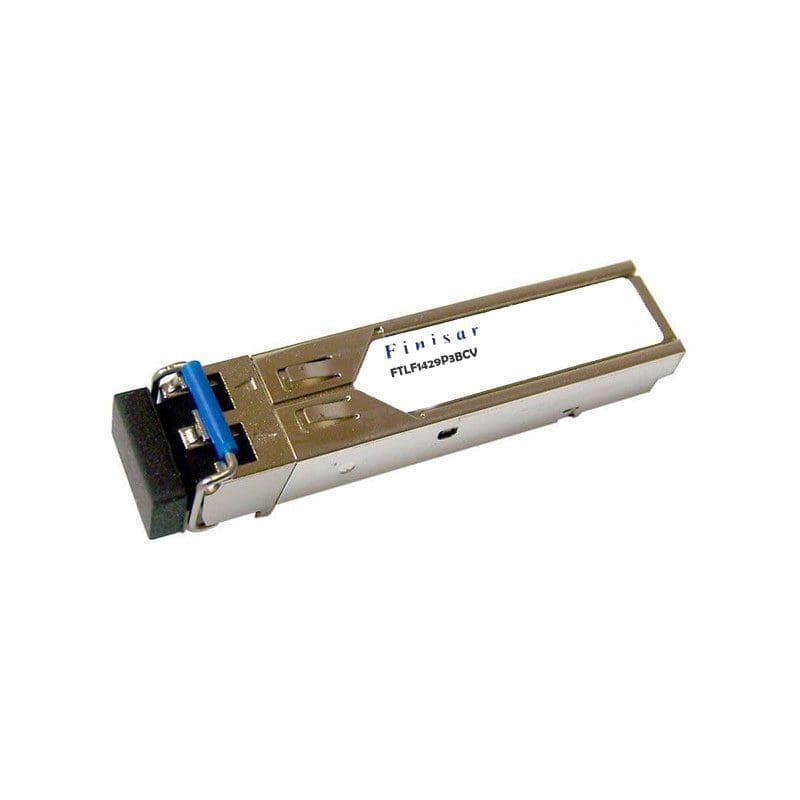

FTLF1429P3BCV Finisar Transceiver Module
FTLF1429P3BCV Overview
$153
FTLF1429P3BCV Technical Specifications
Transceiver Module
Manufacturer: Finisar
Up to 14.025 Gb/s bi-directional data links 10 Gigabit Ethernet
Hot plug gable SFP Plus footprint
Built-in digital diagnostic functions
1310nm DFB laser transmitter
LC Duplex connector
Up to 10 km on 9/125μm SMF
Metal enclosure, for lower EMI
1W maximum power consumption with established link
Single 3.3V power supply
Extended operating temperature range: 0°C to 70°C
