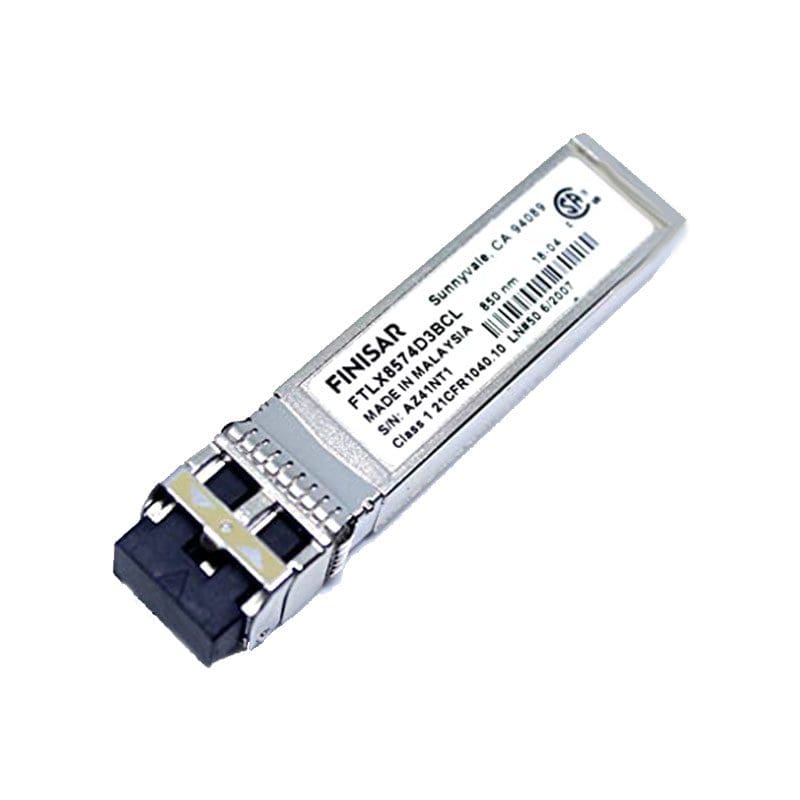

FTLX8574D3BCL Finisar TX/RX Optical Fiber 10Gbps 20-Pin SFP
FTLX8574D3BCL Overview
Finisar’s 10Gb/s SFP+ transceivers are designed for use in 10-Gigabit Ethernet links over multimode fiber.
$33
FTLX8574D3BCL Technical Specifications
TX/RX Optical Fiber 10Gbps 20-Pin SFP
Manufacturer: Finisar
Hot plug gable SFP Plus footprint
Supports 9.95 to 10.5 Gb/s bit rates 10 Gigabit Ethernet
Power dissipation < 1W
Commercial temperature range -5°C to 70°C
Maximum link length of 400m on OM4 MMF
Uncooled 850nm VCSEL laser
Receiver limiting electrical interface
LC Duplex connector
Built-in digital diagnostic functions
