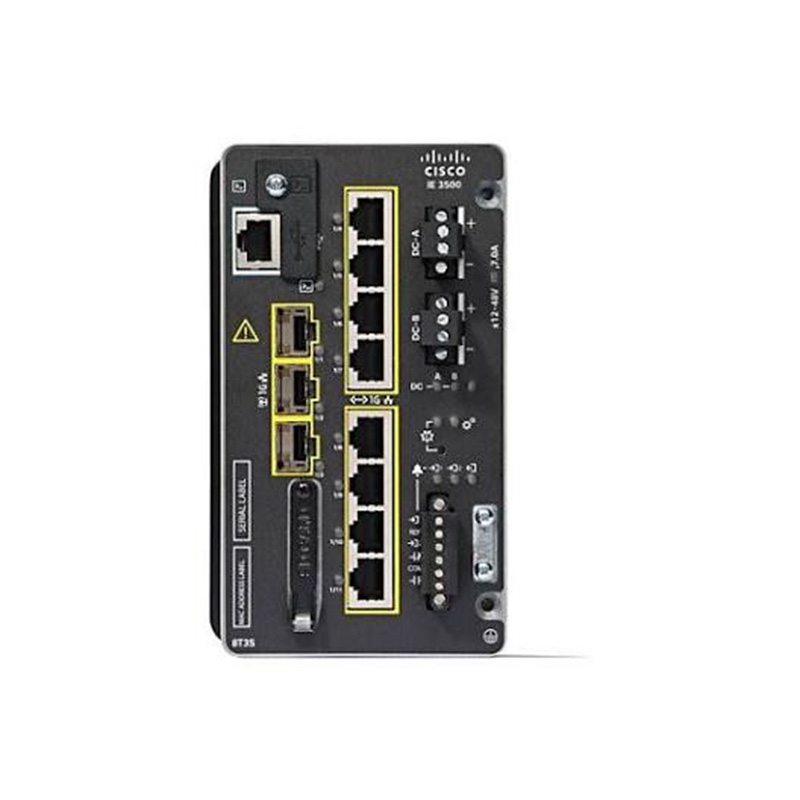

IE-3505-8T3S-A Cisco IE3500 Rugged Series IE-3500-8T3S – switch – 11 ports – managed
IE-3505-8T3S-A Overview
The Cisco IE-3505-8T3S-A is part of the Industrial Ethernet 3500 (IE3500) Rugged Series, designed specifically for harsh and demanding environments such as manufacturing plants, oil and gas facilities, transportation systems, and smart city deployments. It provides 8 Gigabit Ethernet copper ports and 3 SFP uplink ports for flexible connectivity, allowing integration with both copper and fiber-based networks.Built to withstand extreme conditions, the switch supports extended temperature ranges, vibration resistance, and rugged enclosures, making it ideal for industrial use cases. It offers both Layer 2 and Layer 3 features, including VLANs, QoS, security policies, and basic routing capabilities.
$6,990
IE-3505-8T3S-A Technical Specifications
Cisco IE3500 Rugged Series IE-3500-8T3S – switch – 11 ports – managed
Manufacturer: Cisco
Manufacture Part Number: IE-3505-8T3S-A
Switch Type: Layer 2/Layer 3 Managed Industrial Switch
Ports: 8 × 10/100/1000 Gigabit Ethernet RJ-45 ports
Uplink Ports: 3 × 1GbE SFP
Stacking Support: No
PoE Support: No
PoE Budget: N/A
Switching Capacity: up to ~22 Gbps
Forwarding Rate: up to ~16 Mpps
MAC Address Table: up to 16,000 entries
VLAN Support: up to 4096 VLANs
