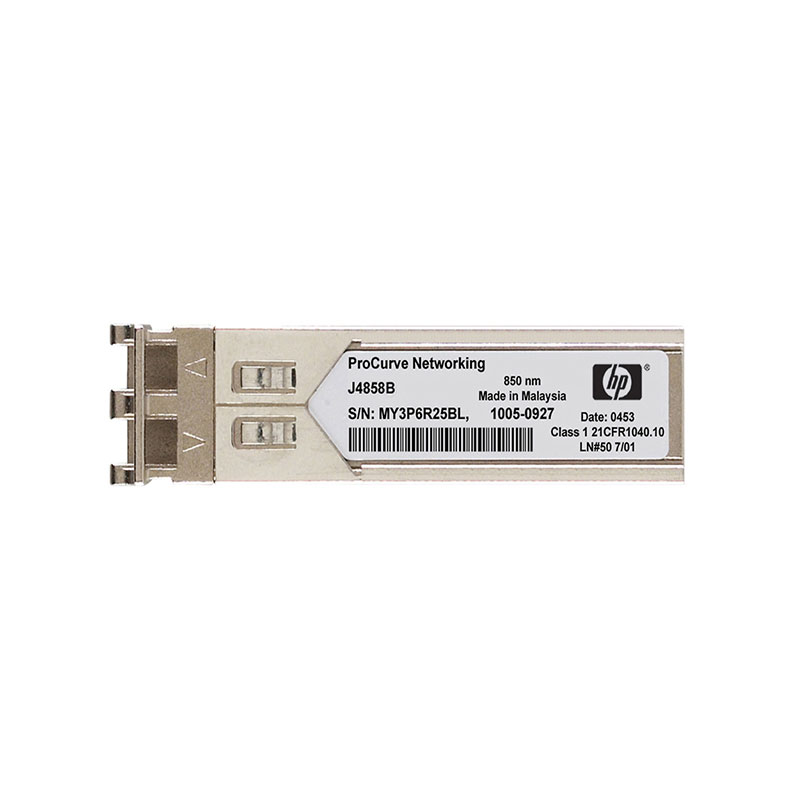

J4858-69201 HP 1Gbps 1000Base-SX Multi-mode Fiber 50m 850nm Transceiver Module
Out of stock
J4858-69201 Overview
The HP J4858-69201 is a 1Gbps optical SFP transceiver module designed for Gigabit Ethernet 1000Base-SX short-range applications. Operating over multi-mode fiber (MMF), it supports transmission distances of up to 550m on OM2/OM3 fiber and 220m on standard MMF, depending on the cable type and quality.This module uses an 850nm wavelength VCSEL laser for short-wave optical transmission and is equipped with a duplex LC connector, providing secure, low-loss fiber connections in high-performance networking environments.Fully compliant with IEEE 802.3z Gigabit Ethernet standards and the SFP Multi-Source Agreement (MSA), the J4858-69201 ensures interoperability with a wide range of HP networking switches, servers, and storage systems.
J4858-69201 Technical Specifications
HP 1Gbps 1000Base-SX Multi-mode Fiber 50m 850nm Duplex LC Connector SFP Transceiver Module
Manufacturer Part Number: J4858-69201
Brand Name: HP
Product Type: SFP Transceiver Module
Data Rate: 1Gbps
Transceiver Type: 1000Base-SX (Short Wavelength)
Media Type Supported: Multi-Mode Fiber (MMF)
Wavelength: 850nm
Connector Type: LC Duplex
Maximum Reach: Up to 550m (OM2) / 220m (OM1) / 50m (OM3 at 850nm)
Form Factor: SFP
Hot Swappable: Yes
Digital Diagnostics Monitoring (DOM): Supported
Fiber Strand Count: 2 (duplex)
Compatibility: HP ProCurve and HP networking switches
Application: Gigabit Ethernet networking over MMF
Standards Compliance: IEEE 802.3z 1000Base-SX, SFP MSA
Backward Compatibility: Works with standard Gigabit Ethernet ports
Operating Temperature: 0°C to 70°C
Low Power Consumption: Energy-efficient design
Installation: Plug-and-play module
Use Case: Short-range Gigabit Ethernet backbone and LAN connectivity
Signal Type: Optical
Protocol Support: Gigabit Ethernet
