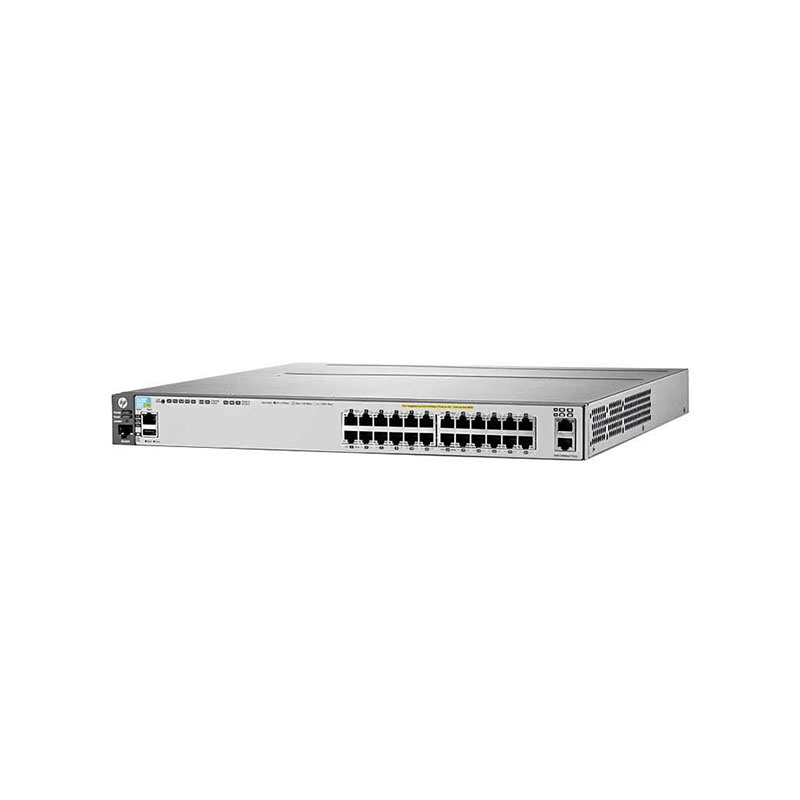

J9585-61101 HP E3800-24G-2XG 24-Ports 10/100/1000 RJ-45 Manageable Layer3 Rack-mountable Switch
Out of stock
J9585-61101 Overview
The HP E3800-24G-2XG (J9585-61101) is a 24-port managed Layer 3 Gigabit Ethernet switch designed for enterprise and branch networks that require high-performance connectivity, advanced Layer 3 routing, and flexible uplink options. It features 24 x 10/100/1000Base-T RJ-45 ports, providing full Gigabit speeds to desktops, servers, IP phones, and wireless access points, making it ideal for access-layer deployments.In addition to the standard ports, the switch includes 2 x 10GbE uplink ports, allowing high-speed connections to aggregation or core switches and supporting backbone scalability. As a Layer 3 switch, the E3800-24G-2XG supports inter-VLAN routing, static routing, and dynamic routing protocols, enabling efficient traffic segmentation and optimized network performance.
J9585-61101 Technical Specifications
HP E3800-24G-2XG 24-Ports 10/100/1000 RJ-45 Manageable Layer3 Rack-mountable Switch
Manufacturer Part Number: J9585-61101
Brand Name: HP
Product Line: E3800 Series
Product Type: Layer 3 Managed Gigabit Ethernet Switch
Total Ports: 24
Gigabit Ethernet Ports: 24 x 10/100/1000Base-T RJ-45
Uplink/Expansion Ports: 2 x 10GbE XG SFP+
Layer Support: Layer 2 / Layer 3
Switching Capacity: 128 Gbps
Forwarding Rate: 95 Mpps
MAC Address Table: 32,000 entries
VLAN Support: Up to 512 VLANs (IEEE 802.1Q)
Spanning Tree Protocols: IEEE 802.1D, 802.1w, 802.1s
Static Routing: IPv4 Supported
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
Quality of Service: 8 Priority Queues, IEEE 802.1p
Security: IEEE 802.1X, ACLs, Port Security
Management: Web GUI, CLI, SNMP v1/v2c/v3
RMON Monitoring: 4 Groups Supported
Port Mirroring: Port and VLAN Based
