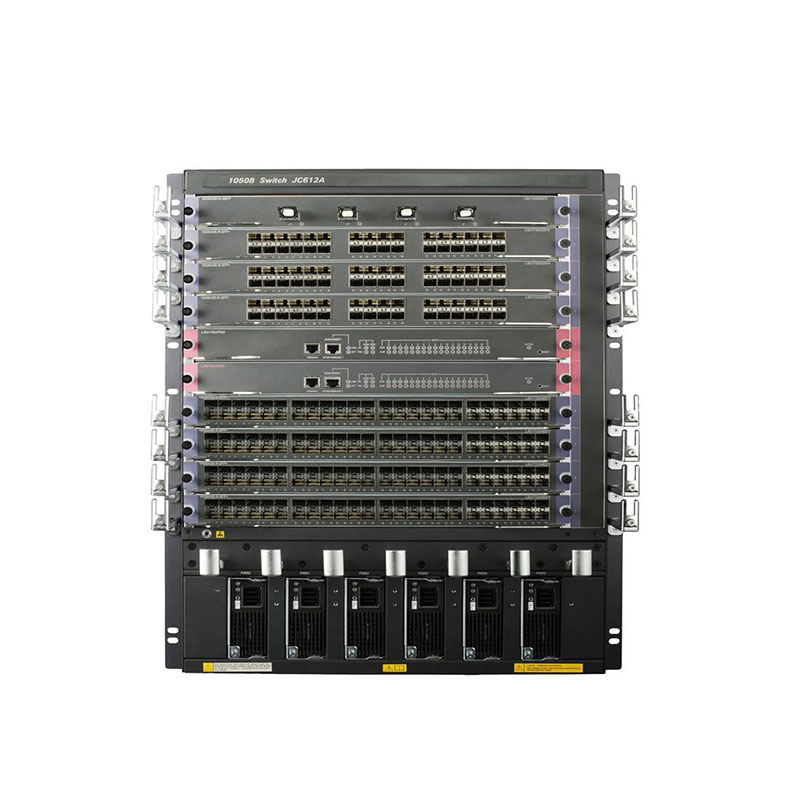

JC612A HP 10508 Switch Chassis Manageable 14 x Expansion Slots
Out of stock
JC612A Overview
The HP JC612A 10508 Switch Chassis is a high-performance modular switch platform designed for enterprise core and aggregation layers. It features 14 expansion slots, allowing flexible installation of line cards to support high-density Gigabit, 10/25/40/100GbE, or other interfaces depending on network requirements.The chassis supports advanced Layer 2 and Layer 3 features, including dynamic routing, VLANs, link aggregation, QoS, and robust security with ACLs, RADIUS, and TACACS+ authentication. It is suitable for large-scale, high-throughput networks requiring redundancy, scalability, and centralized management.
JC612A Technical Specifications
HP 10508 Switch Chassis Manageable 14 x Expansion Slots
Manufacturer Part Number: JC612A
Brand Name: HP
Product Line: HP 10500 / 10508 Series
Product Type: Modular Managed Switch Chassis
Total Ports: Depends on installed modules
Uplink/Expansion Slots: 14 x Expansion Slots for line cards
Layer Support: Layer 2 / Layer 3 / Layer 4
Switching Capacity: Up to 1.28 Tbps (depending on modules)
Forwarding Rate: Up to 960 Mpps (depending on modules)
MAC Address Table: Up to 128,000 entries
VLAN Support: Up to 4,094 VLANs (IEEE 802.1Q)
Spanning Tree Protocols: IEEE 802.1D, 802.1w, 802.1s
Static Routing: IPv4 / IPv6 Supported
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
Quality of Service: 8 Priority Queues, IEEE 802.1p
Security: IEEE 802.1X, ACLs, Port Security
Management: Web GUI, CLI, SNMP v1/v2c/v3
RMON Monitoring: Supported
