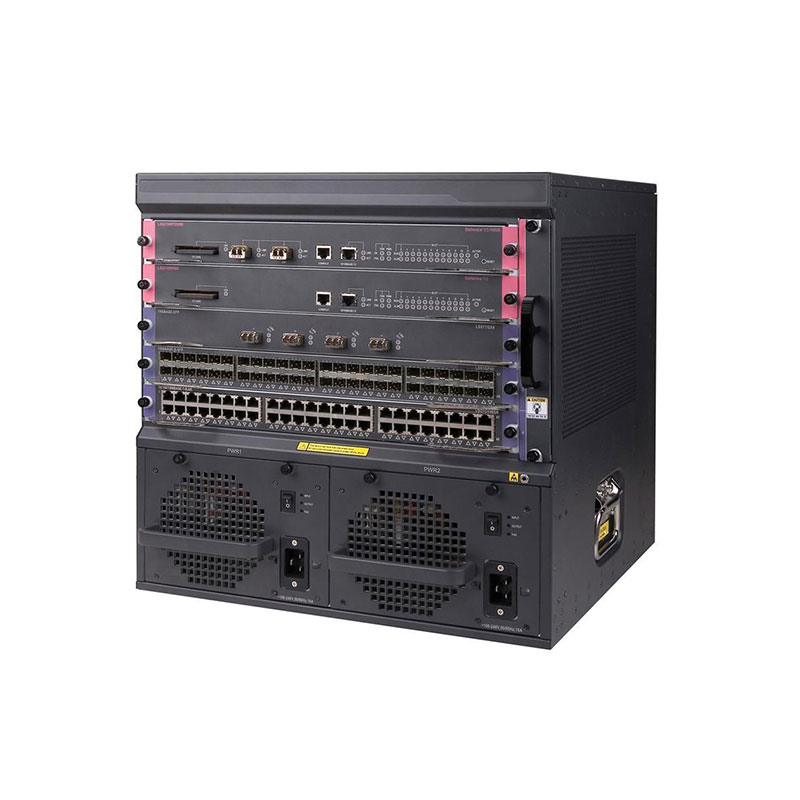

JD240C HP FlexNetwork 10Gbe 7500 48-Ports Switch Chassis
Out of stock
JD240C Overview
The HP JD240C FlexNetwork 7500 is a high-performance modular switch chassis equipped with 48 10GbE ports, designed for enterprise core, aggregation, and data center networks requiring ultra-fast throughput, scalability, and advanced network control.Part of the HP FlexNetwork 7500 series, it supports Layer 2 and Layer 3 advanced features, including VLANs, link aggregation, dynamic routing protocols, MPLS, QoS, and strong security options such as ACLs, RADIUS, and TACACS+. These capabilities make it ideal for large-scale, mission-critical environments.
JD240C Technical Specifications
HP FlexNetwork 10Gbe 7500 48-Ports Switch Chassis
Manufacturer Part Number: JD240C
Brand Name: HP
Product Line: HP 7500 Series FlexNetwork
Product Type: Layer 3 Managed Switch Module (for 7500 Chassis)
Form Factor: Line Card / Expansion Module
Total Ports: 48
10 Gigabit Ethernet Ports: 48 x 10GbE SFP+
Layer Support: Layer 2 / Layer 3 / Layer 4
Switching Capacity: Up to 480 Gbps per slot
Forwarding Rate: Up to 357 Mpps
MAC Address Table: 128,000 entries (shared with chassis)
VLAN Support: Up to 4,094 VLANs (IEEE 802.1Q)
Spanning Tree Protocols: IEEE 802.1D, 802.1w, 802.1s
Routing: IPv4 / IPv6 Supported
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
Quality of Service: 8 Priority Queues, IEEE 802.1p, DiffServ
Security: IEEE 802.1X, ACLs, Port Security
Management: Managed via 7500 Series Chassis
