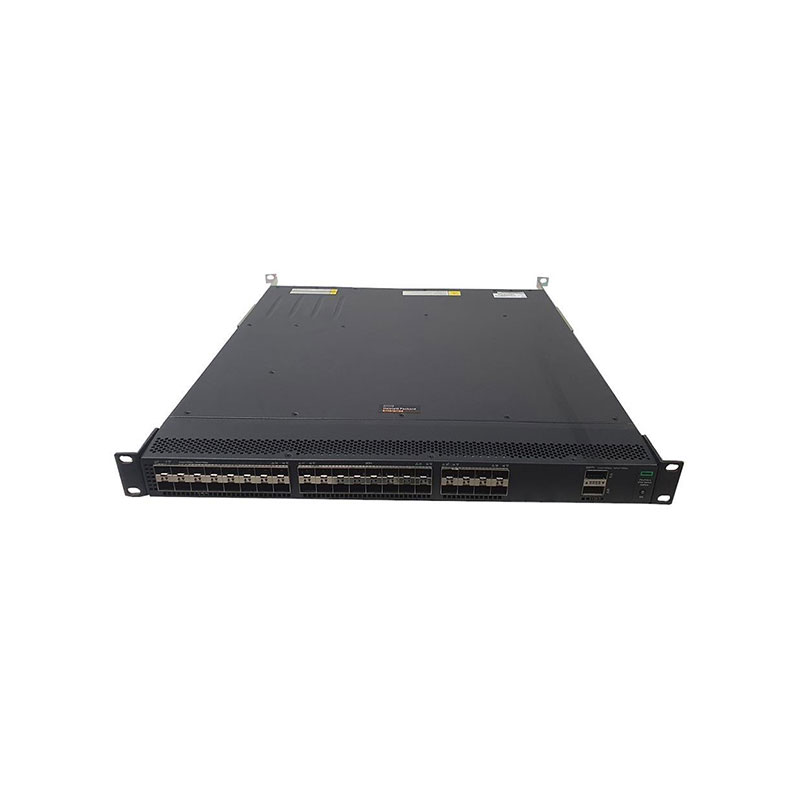

HPE-JG896-61001 HPE – 40-P Flexfabric + SFP+ QSFP+ 2-P Switch L3
Out of stock
JG896-61001 Overview
The HPE JG896-61001 is a high-performance 40-port FlexFabric Layer 3 managed switch designed for enterprise and data center networks requiring high throughput and flexible connectivity. It features 40 ports with a combination of SFP+ and QSFP+ uplinks, supporting 10GbE and 40GbE connections for servers, storage, and aggregation layers, enabling scalable, high-speed network deployments.Built on the HPE FlexFabric architecture, the switch delivers wire-speed Layer 2 and Layer 3 switching, advanced routing protocols, and support for VXLAN, MPLS, and network virtualization, making it suitable for modern virtualized data centers and cloud environments.
JG896-61001 Technical Specifications
HPE – 40-P Flexfabric + SFP+ QSFP+ 2-P Switch L3
Manufacturer Part Number: JG896-61001
Brand Name: HPE
Product Type: Managed Layer 3 Switch
Total Ports: 42
10/25/40-Gigabit Ethernet Ports: 40 x SFP+ / QSFP+
Additional Ports: 2 x Expansion / uplink ports
Switching Capacity: 2.56 Tbps
Forwarding Rate: 1,428 Mpps
Layer Support: Layer 2 / Layer 3
MAC Address Table: 288,000 entries
VLAN Support: 4,094 VLANs (IEEE 802.1Q)
Routing: Static, RIP, OSPF, BGP, IPv4/IPv6
Spanning Tree Protocols: STP, RSTP, MSTP
Link Aggregation: IEEE 802.3ad LACP
Quality of Service (QoS): 8 queues, DSCP, IEEE 802.1p
Security: ACLs, 802.1X, DHCP Snooping, uRPF
Management: CLI, Web UI, SNMP, RMON, sFlow
Port Mirroring: Supported
