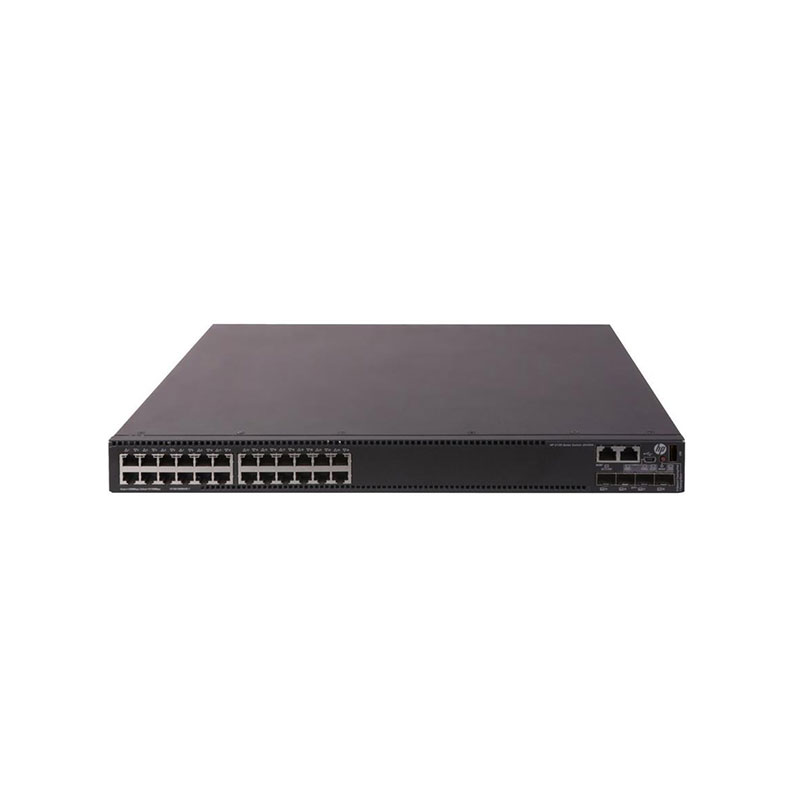

JH325A HP ProCurve 5130 HI-24G 4SFP+ 1-slot Managed Switch
Out of stock
JH325A Overview
The HP JH325A 5130 HI-24G 4SFP+ is a Layer 3 fully managed switch featuring 24 RJ-45 10/100/1000Base-T ports and 4 SFP+ uplink ports in a 1-slot modular chassis. It is designed for enterprise aggregation, core, and campus networks requiring high-performance, low-latency, and scalable connectivity.The switch supports advanced Layer 2 and Layer 3 features, including VLANs, link aggregation, dynamic routing protocols, QoS, and strong security via ACLs, RADIUS, and TACACS+. These features ensure efficient traffic management, secure operations, and optimized application performance.
JH325A Technical Specifications
HP ProCurve 5130 HI-24G 4SFP+ 1-slot Managed Switch
Manufacturer Part Number: JH325A
Brand Name: HP
Product Line: HP 5130 HI Series
Product Type: Layer 3 Managed Gigabit Ethernet Switch
Total Ports: 28
Gigabit Ethernet Ports: 24 x 10/100/1000Base-T RJ-45
Uplink/Expansion Ports: 4 x 10GbE SFP+
Expansion Slots: 1 (for additional module)
Layer Support: Layer 2 / Layer 3
Switching Capacity: 176 Gbps
Forwarding Rate: 130 Mpps
MAC Address Table: 32,000 entries
VLAN Support: Up to 4,094 VLANs (IEEE 802.1Q)
Spanning Tree Protocols: IEEE 802.1D, 802.1w, 802.1s
Static Routing: IPv4 / IPv6 Supported
Dynamic Routing: RIP, OSPF, BGP Supported
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
