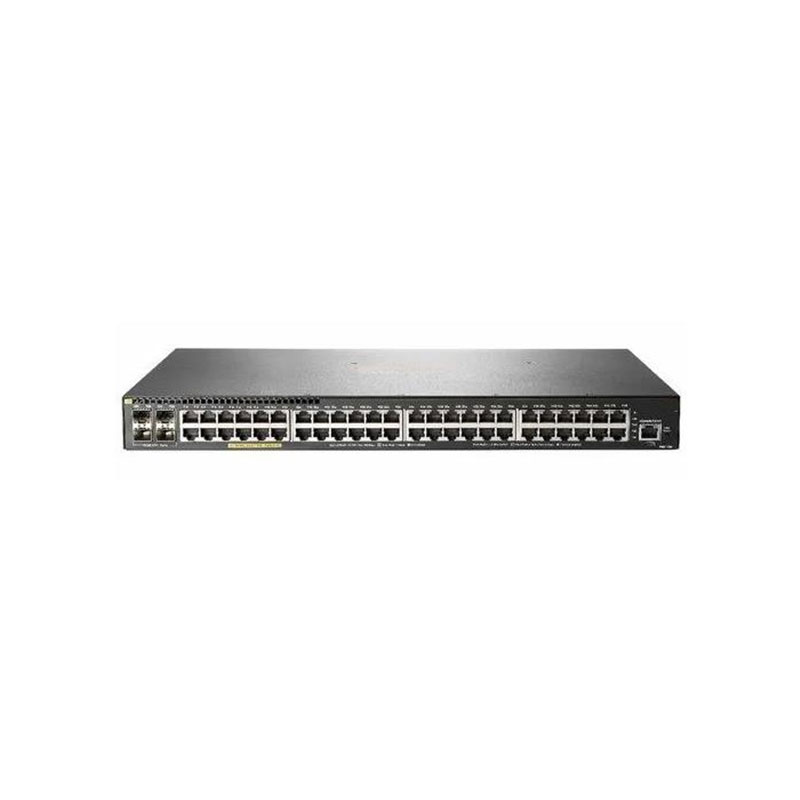

JL256-61001 HP 2930F 48G PoE+ 4SFP+ 48-Port + 4-Port SFP+ L3 Switch

Availability:

Out of stock


JL256-61001 Overview

The HP JL256-61001 2930F Switch is a Layer 3 fully managed switch designed for enterprise access and aggregation with high performance, scalability, and Power over Ethernet Plus (PoE+) support. It comes with 48 × 10/100/1000Base-T RJ-45 Gigabit Ethernet ports, all capable of delivering PoE+ power to connected devices such as IP phones, wireless access points, and security cameras, eliminating the need for separate power supplies.In addition, the switch is equipped with 4 × 10GbE SFP+ uplink ports, providing high-speed connectivity to distribution or core switches, ensuring seamless network expansion and supporting bandwidth-intensive applications.As a Layer 3 switch, it supports advanced routing functions including static and dynamic routing.

JL256-61001 Technical Specifications

HP 2930F 48G PoE+ 4SFP+ 48-Port + 4-Port SFP+ L3 Switch

Manufacturer: HP
Manufacturer Part Number: JL256-61001
Type: Layer 3 Managed PoE+ Switch
Ports: 48 x 10/100/1000Base-T RJ-45
Uplink Ports: 4 x SFP+ 10GbE
PoE: IEEE 802.3af/at PoE+ supported
Layer: Layer 3 advanced switching and routing
Management: Web GUI, CLI, SNMP, RMON, Aruba AirWave, Central
VLAN: IEEE 802.1Q VLAN tagging, up to 4K VLANs
QoS: Traffic prioritization, shaping, rate limiting
Security: ACLs, port security, DHCP snooping, 802.1X authentication
Switching Capacity: 176 Gbps
Forwarding Rate: 130.9 Mpps
Stacking: VSF (Virtual Switching Framework) supported
Routing: Static, RIP, OSPF, IPv6 routing
Multicast: IGMP snooping, PIM
Form Factor: 1U rack-mountable

SKU: JL256-61001 Categories: , Tags: , , , ,
