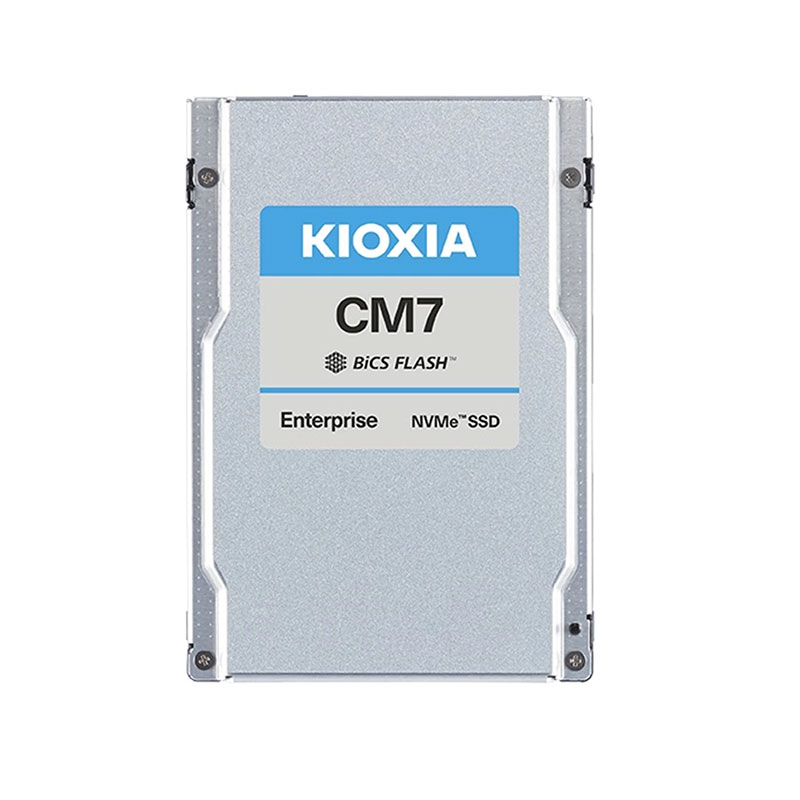

KCMYDRUG1T92 Kioxia 1.92tb Cm7-r Series Pcie 5.0 Nvme 2.0 2.5inch Enterprise SSD

KCMYDRUG1T92 Technical Specifications

Kioxia 1.92tb Cm7-r Series Pcie 5.0 Nvme 2.0 2.5inch 15mm Thickness 1dwpd Enterprise Solid State Drive

Form Factor : 2.5-inch, 15mm Thickness
Lnterface : Pcie® 5.0, Nvme™ 2.0
Flash Memory Type : Bics Flash™ Tlc
Performance In Single Port (1×4) Mode (up To) :
Sustained 128 Kib Sequential Read : 14,000 Mb/s
Sustained 128 Kib Sequential Write : 3,500 Mb/s
Sustained 4 Kib Random Read : 2,000k Iops
Sustained 4 Kib Random Write : 155k Iops
Power Requirements :
Supply Voltage : 12 V ± 10 %, 3.3 V ± 15 %
Power Consumption (active) : 22 W Typ.
Power Consumption (ready) : 5 W Typ.
Reliability :
Mttf : 2,500,000 Hours
Dwpd : 1
Dimensions :
Thickness : 15.0 Mm +0 / -0.5 Mm
Width : 69.85 Mm ± 0.25 Mm
Length : 100.45 Mm Max
Weight : 130 G Max
Environmental :
Temperature (non-operating) : -40 °c To 85 °c
Humidity (operating) : 5 % To 95 % R.h.
