Q8J73-63001 HPE 100GbE 500m 1310mm PSM4 Transceiver
Out of stock
Q8J73-63001 Overview

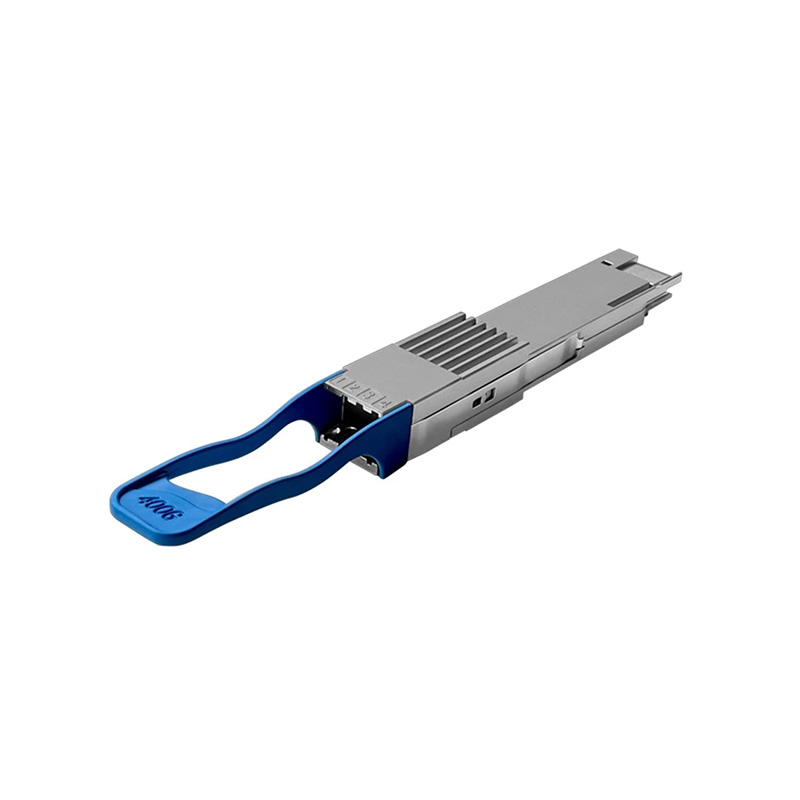

The HPE 100GbE PSM4 Transceiver is a high-performance optical module engineered for reliable 100 Gigabit Ethernet connectivity. Supporting the 100GBase-PSM4 standard, it transmits data over parallel single-mode fiber using 4 lanes at 25Gbps each, with a maximum reach of 500 meters at 1310nm. Designed in QSFP28 form factor with MPO-12 connector, this module is hot-swappable and optimized for scalable, high-bandwidth data center environments.
Q8J73-63001 Technical Specifications
HPE 100GbE 500m 1310mm PSM4 Transceiver
Manufacturer: HPE
Manufacture Part number: Q8J73-63001
Data Rate: 100Gbps
Standard: 100GBase-PSM4
Fiber Type: Single-Mode Fiber (SMF)
Wavelength: 1310nm
Maximum Distance: 500m over SMF
Connector Interface: MPO-12
Modulation: 4 parallel lanes (25Gbps each)
Form Factor: QSFP28
Hot-Pluggable: Yes
Power Consumption: Low power design
Applications: Data centers, high-performance computing, cloud networking
Compliance: IEEE 802.3bm, RoHS compliant
