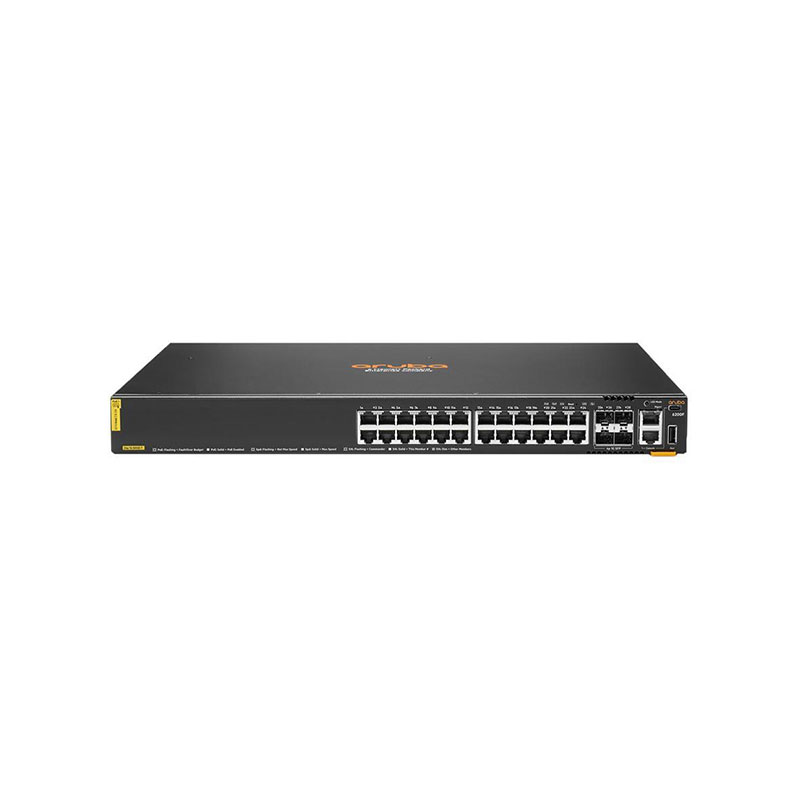

S0M82A HP 24-Ports RJ-45 + 4-Ports SFP L3 Switch
Out of stock
S0M82A Overview
The HPE Aruba CX 6200F S0M82A is a high-performance, enterprise-class access layer switch built on the ArubaOS-CX operating system. Designed for branch offices, midsize enterprises, and campus networks, it provides advanced Layer 2 and Layer 3 switching features, simplified operations, and enhanced security.This model comes with 24 Gigabit RJ-45 ports for device connectivity and 4 dedicated SFP uplink slots, making it ideal for aggregation to distribution or core switches. It delivers non-blocking switching capacity up to 128 Gbps and a forwarding rate of 95 Mpps, ensuring reliable and fast data transmission for high-demand environments.
S0M82A Technical Specifications
HP 24-Ports RJ-45 + 4-Ports SFP L3 Switch
Manufacturer Part Number: S0M82A
Brand Name: HP
Product Type: Managed Layer 3 Gigabit Ethernet Switch
Total Ports: 28
Gigabit Ethernet Ports: 24 x 10/100/1000Base-T RJ-45
Uplink Ports: 4 x 1G SFP
Switching Capacity: 128 Gbps
Forwarding Rate: 95.23 Mpps
Layer Support: Layer 2 / Layer 3
MAC Address Table: 32,000 entries
VLAN Support: Up to 4,094 VLANs (IEEE 802.1Q)
Routing: Static IPv4 / IPv6, OSPF, RIP, VRF
Spanning Tree Protocols: STP, RSTP, MSTP
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
Quality of Service (QoS): 8 queues, DSCP, IEEE 802.1p
Security: 802.1X, ACLs, Port Security, DHCP Snooping
PoE Support: Not available
Management: Web UI, CLI, SNMP, RMON, Aruba Central
Port Mirroring: Supported
