SB5PH27E016T001 Solidigm D7-ps1030 1.6tb 2.5inch Pcie 5.0 Tlc SSD
SB5PH27E016T001 Overview

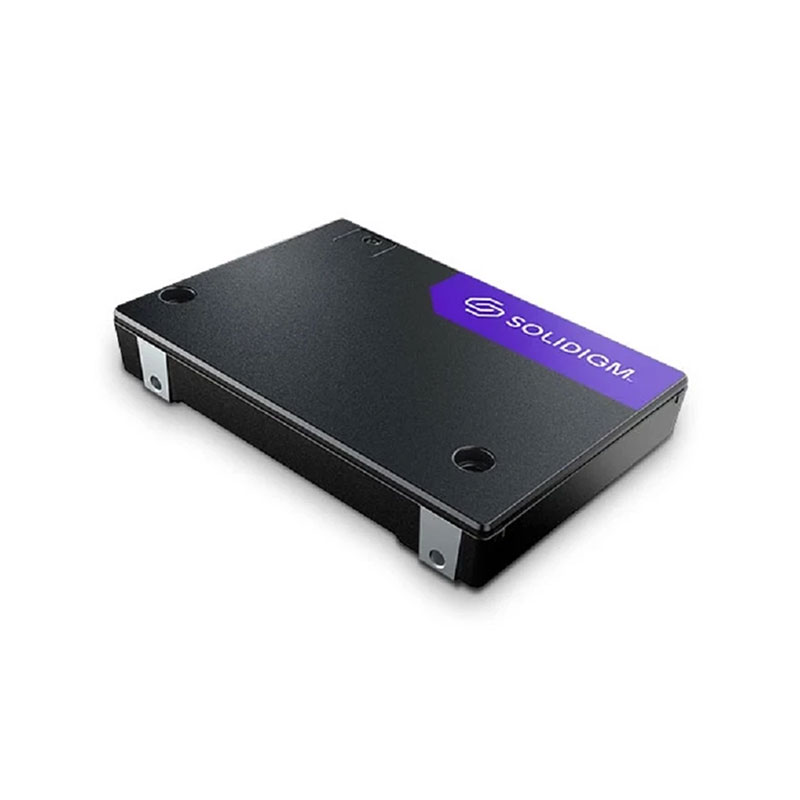

The Solidigm D7-PS1030 1.6TB SSD (SB5PH27E016T001) is a next-generation enterprise-class solid-state drive designed to deliver exceptional performance, reliability, and efficiency for modern data centers, cloud platforms, AI infrastructure, and high-performance computing environments. Featuring a PCIe 5.0 x4 NVMe interface and advanced 176-layer 3D TLC NAND technology, this 2.5-inch U.2 SSD provides ultra-fast data access speeds and low latency, making it an ideal solution for write-intensive and mixed-workload applications such as OLTP databases, metadata logging, analytics, virtualization, and AI/ML workloads. The D7-PS1030 series is specifically engineered to maximize throughput while maintaining outstanding power efficiency and long-term durability.
$1,935
SB5PH27E016T001 Technical Specifications
Solidigm D7-ps1030 1.6tb 2.5inch Pcie 5.0 X4 V7 Tlc Generic No Opal Solid State Drive
Manufacturer : SOLIDIGM
Manufacturer Part : SB5PH27E016T001
Product Series : D7-ps1030
Product Name : D7-ps1030 Series Tlc Solid State Drive.
Technical Information :
Storage Capacity : 1.6 Tb
Interface Type : Pcie 5.0 X4, Nvme
Form Factor : U.2 15 Mm
Lithography : 176l Tlc 3d Nand
Endurance Rating : Mid-endurance (me)
Shock : 1000 G/0.5 Msec
Mtbf : 2.5 Million Hours
Performance :
Sequential Bandwidth – 100% Read (up To) : 14500 Mb/s
Sequential Bandwidth – 100% Write (up To) : 4100 Mb/s
Random Read (100% Span) : 2350000 Iops (4k Blocks)
Random Write (100% Span) : 350000 Iops (4k Blocks)
Power – Active : 17w
Power – Idle : 5w
