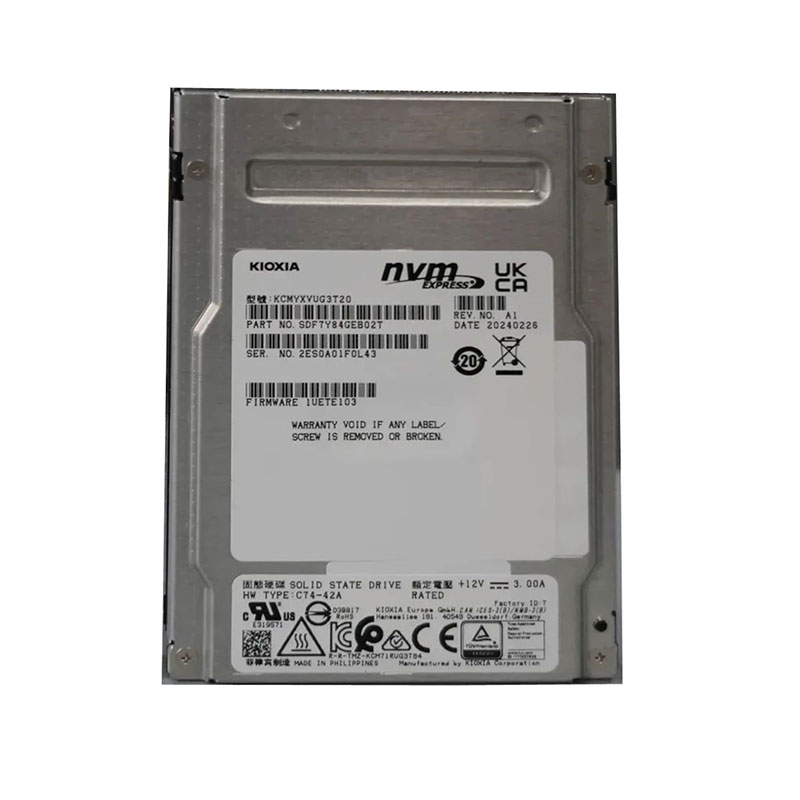

SDF7Y84GEB02T Kioxia 3.2tb Cm7-v Mixed Use 2.5inch Pci E Internal SSD
SDF7Y84GEB02T Ovevriew
The SDF7Y84GEB02T Kioxia CM7-V 3.2TB Enterprise SSD is a high-performance storage solution designed for demanding data center and enterprise workloads. Built by Kioxia, this drive utilizes the latest PCIe 5.0 NVMe 2.0 interface to deliver extremely fast data transfer speeds, low latency, and improved overall system responsiveness. With a 2.5-inch form factor and 15mm thickness, it is optimized for modern server environments where space efficiency and high density storage are essential. The drive offers a mixed-use workload rating with a durability of 3 Drive Writes Per Day (DWPD),
$3,450
SDF7Y84GEB02T Technical Specifications
Kioxia 3.2tb Cm7-v Mixed Use 2.5inch Pci Express 5.0 (nvme) 2.0 15mm Thickness Enterprise 3 Dwpd Internal Solid State Drive
Manufacturer: Kioxia
Manufacture Part Number: SDF7Y84GEB02T
Type : Solid State Drive – Internal
Capacity : 3.2 Tb
Flash Memory Type : Bics Flash Tlc
Form Factor : 2.5
Interface : Pci Express 5.0 (nvme) 2.0
Performance :
Sustained 128 Kib Sequential Read : 14,000 Mb/s
Sustained 128 Kib Sequential Write : 6,750 Mb/s
Sustained 4 Kib Random Read : 2,700k Iops
Sustained 4 Kib Random Write : 600k Iops
Power Requirements :
Supply Voltage : 12 V ± 10 %, 3.3 V ± 15 %
Power Consumption (active) : 25 W Typ.
Power Consumption (ready) : 5 W Typ.
Reliability :
Mttf : 2,500,000 Hours
Dwpd : 3
Dimensions :
Width : 100.45 Mm
Depth : 69.85 Mm
Height : 15.0 Mm
Weight : 130 G
