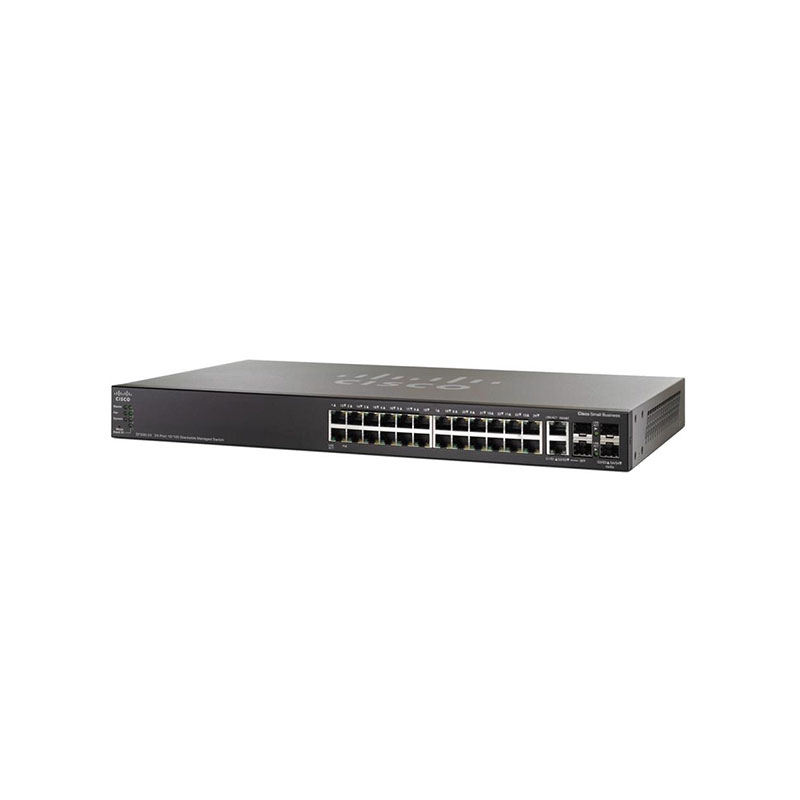

SG500X-24P-K9 Cisco SG500X 24-Ports 10/100/1000 RJ-45 PoE Manageable Layer3 Switch
Out of stock
SG500X-24P-K9 Overview
The Cisco SG500X-24P-K9 is a 24-port Gigabit Ethernet Layer 3 managed switch that provides advanced performance, scalability, and flexibility for growing business networks while also delivering Power over Ethernet (PoE/PoE+) support. It features 24 x 10/100/1000Base-T RJ-45 Gigabit Ethernet PoE-enabled ports, making it ideal for powering devices such as IP phones, wireless access points, and security cameras without requiring separate power adapters.In addition to the Gigabit ports, it is equipped with 4 x 10-Gigabit SFP+ uplink ports, enabling high-bandwidth connections to servers, storage, or backbone switches. As part of the Cisco 500X Series, the SG500X-24P-K9 supports Layer 3 static routing, VLAN segmentation, QoS, link aggregation, and advanced security features, giving businesses enterprise-grade network control.
SG500X-24P-K9 Technical Specifications
Cisco SG500X 24-Ports 10/100/1000 RJ-45 PoE Manageable Stackable Layer3 Rack-mountable Switch with 4x 10 Gigabit SFP+ Ports
Manufacturer: Cisco
Manufacturer Part Number: SG500X-24P-K9
Series: Small Business SG500X
Type: Managed Stackable Gigabit Switch with PoE
Ports: 24 x 10/100/1000 RJ-45 Gigabit Ethernet
Uplink Ports: 4 x 10 Gigabit SFP+
PoE Support: Yes, PoE+ (802.3af/802.3at)
PoE Power Budget: Up to 375W
Switching Capacity: 128 Gbps
Forwarding Rate: 95.23 Mpps
Layer Support: Layer 2 switching + Layer 3 routing (static, dynamic)
Stacking Support: Up to 8 units, 40 Gbps stack bandwidth
Management: Web GUI, CLI, SNMP, RMON
VLAN Support: Up to 4096 VLANs
QoS: Advanced traffic prioritization, 8 queues
Security: 802.1X authentication, ACLs, port security, DoS prevention
MAC Address Table: 16K entries
Jumbo Frames: Up to 10K bytes
Resiliency: STP, RSTP, MSTP, VRRP
