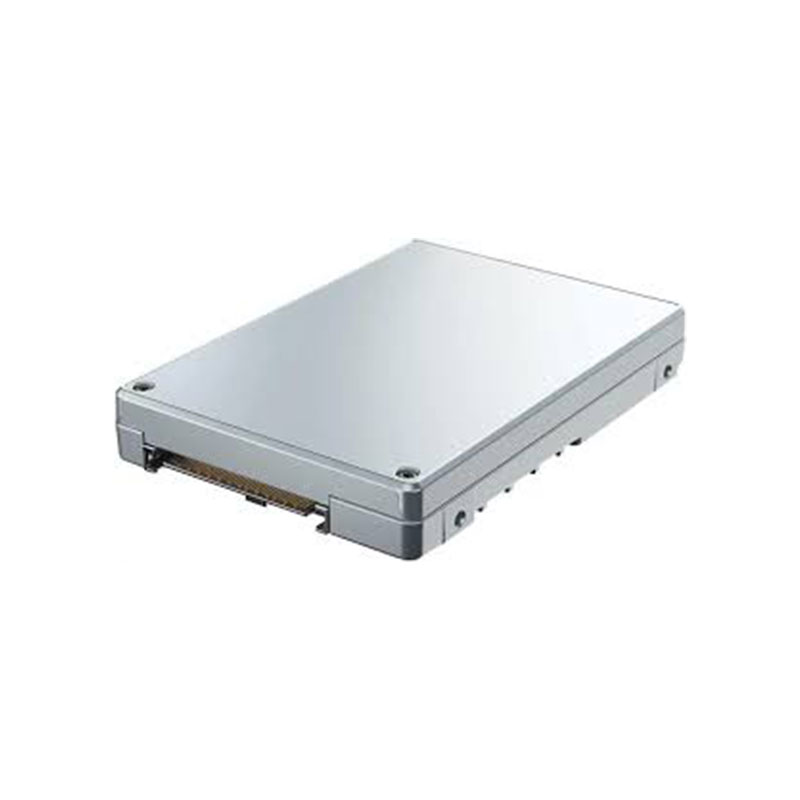

SSDPF2KE128T1N1 Solidigm 12.8TB PCI-E 4.0 X4 3D4 TLC SSD
SSDPF2KE128T1N1 Overview
The Solidigm SSDPF2KE128T1N1 12.8TB PCI-E 4.0 X4 3D4 TLC SSD is designed to deliver high performance with its use of the PCI-Express 4.0 interface and x4 lane configuration. This means that it can transfer data at faster speeds compared to earlier versions of the PCI-E interface.
The use of 3D NAND technology and TLC flash memory allows for high storage capacity, reaching 12.8TB, and relatively low cost. However, TLC flash memory is known to have slightly lower performance and durability compared to other types of flash memory.
The SSD’s sequential read and write speeds are rated at up to 7,000MB/s and 6,300MB/s respectively, which means it can quickly transfer large files such as videos and high-resolution images.
$6,260
SSDPF2KE128T1N1 Technical Specifications
Solidigm 12.8 Terabytes (TB) Peripheral Component Interconnect Express (PCI-E) 4.0 X4 3D4 Triple Level Cell (TLC) Solid State Drive
Manufacturer: Solidigm
Model Number or SKU# SSDPF2KE128T1N1
Product Type: Solid State Drive
Storage Capacity: 12.8TB
Technical Information of 12.8TB Solid State Drive
Form Factor: U.2 15mm
Interface Type: PCI-E 4.0 X4, NVMe
Lithography: 144l TLC 3d NAND
Shock: 1000 G/0.5 Msec
MTBF: 2000000 Hours
Performance for PCI-E SSD
Sequential Bandwidth – 100% Read (up To): 7100 MBPS
Sequential Bandwidth – 100% Write (up To): 3700 MBPS
Random Read (100% Span): 1000000 IOPS (4k Blocks)
Random Write (100% Span): 374000 IOPS (4k Blocks)
Dimensions & Weight
Height: 0.6 inch
Width: 2.7 inch
Depth: 3.9 inch
Weight: 0.35 lbs
Advanced Technologies
Enhanced Power Loss Data Protection: Yes
Hardware Encryption: Aes 256 Bit
Temperature Monitoring And Logging: Yes
End-to-end Data Protection: Yes
