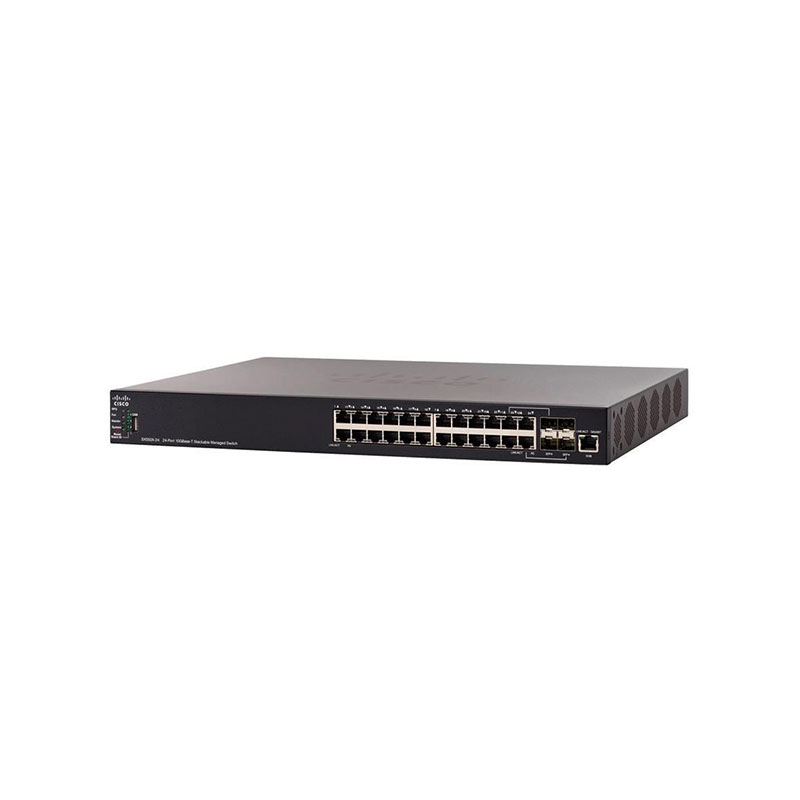

SX550X-24F-K9 Cisco 550X Series 24 x SFP+ Ports 10GBase-X + 4 x combo 10 GE copper/SFP+ Layer 3 Switch
Out of stock
SX550X-24F-K9 Overview
The Cisco SX550X-24F-K9 is a high-performance, stackable Layer 3 managed switch from the Cisco 550X Series, designed for demanding business and enterprise networks. It is equipped with 24 SFP+ ports supporting 10GBase-X, enabling full 10-Gigabit fiber connectivity for high-speed aggregation, server access, or backbone deployments. In addition to the fiber ports, it provides 4 combo 10GE copper/SFP+ ports, offering flexibility to connect either copper-based 10GBase-T links or additional fiber uplinks depending on deployment needs.
SX550X-24F-K9 Technical Specifications
Cisco 550X Series 24 x SFP+ Ports 10GBase-X + 4 x combo 10 GE copper/SFP+ Layer 3 Managed Rack-mountable Gigabit Ethernet Stackable Network Switch
Manufacturer: Cisco
Manufacturer Part Number: SX550X-24F-K9
Series: Small Business 550X Series
Type: Layer 3 Stackable Managed Switch
Ports: 24 x 10G SFP+
Uplink Ports: 4 x Combo 10G copper/SFP+
PoE Support: No
Switching Capacity: 480 Gbps
Forwarding Rate: 357.14 Mpps
Layer Support: Layer 3 advanced routing
Management: Web GUI, CLI, SNMP v1/v2/v3, RMON
VLAN Support: Up to 4,094 VLANs (802.1Q)
QoS: 802.1p priority, DSCP, traffic shaping, policing
Security: 802.1X authentication, ACLs, RADIUS, port security, DoS prevention
MAC Address Table: 32K entries
Jumbo Frames: Up to 9K bytes supported
Stacking Capability: Yes, up to 8 units
Resiliency: STP, RSTP, MSTP, VRRP
Form Factor: 1U Rack-mountable
Rack Mount: Supported
Auto MDI/MDIX: Supported
Duplex Mode: Full duplex
Flow Control: IEEE 802.3x compliant
