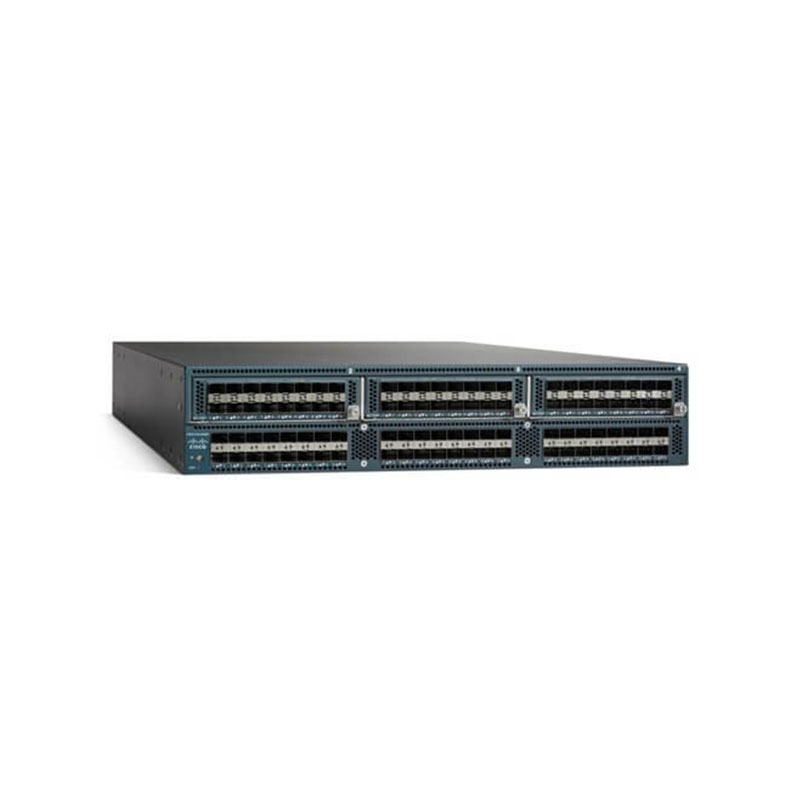

UCS-FI-6296UP Cisco 96 Ports SFP+ Fabric Interconnect Managed Switch
Out of stock
UCS-FI-6296UP Overview
The UCS-FI-6296UP switch provides non-blocking performance with 192 ports, each supporting 40 Gbps of upstream bandwidth. It offers a switching capacity of up to 2.5 Tbps, making it capable of supporting the high-speed traffic demands of modern data centers. The switch uses cut-through switching technology to reduce the latency and provide consistent low-latency performance even under heavy traffic loads.
UCS-FI-6296UP Technical Specifications
Cisco Unified Computing System 96 Ports SFP+ Fabric Interconnect 2U Rack mountable 10 Gigabit/Fibre Channel over Ethernet (FCoE) Managed Switch
Manufacturer: Cisco
Manufacturer Part Number: UCS-FI-6296UP
Brand Name: Cisco
Device TypeSwitch: 48 ports – managed
Enclosure Type: Rack-mountable 2U
Subtype10: Gigabit Ethernet
Ports18 x 10 Gigabit / FCoE SFP+
Performance
Throughput: 1920 Gbps
MAC Address: Table Size32000 entries
Jumbo Frame Support: 9216 bytes
Remote Management Protocol: RMON
Compliant Standards
Expansion / Connectivity
Interfaces1 x 1000Base-T RJ-45 management ¦ 48 x SFP+
Expansion Slots3 (total) / 3 (free) x expansion slot
Power
Power DeviceInternal power supply – hot-plug
Installed Qty0 (installed) / 2 (max)
Power RedundancyOptional
Power Redundancy Scheme1+1 (with optional power supply)
Environmental Parameters
Min Operating Temperature32 °F
Max Operating Temperature104 °F
Humidity Range Operating5 – 95% (non-condensing)
Min Storage Temperature-40 °F
Max Storage Temperature158 °F
