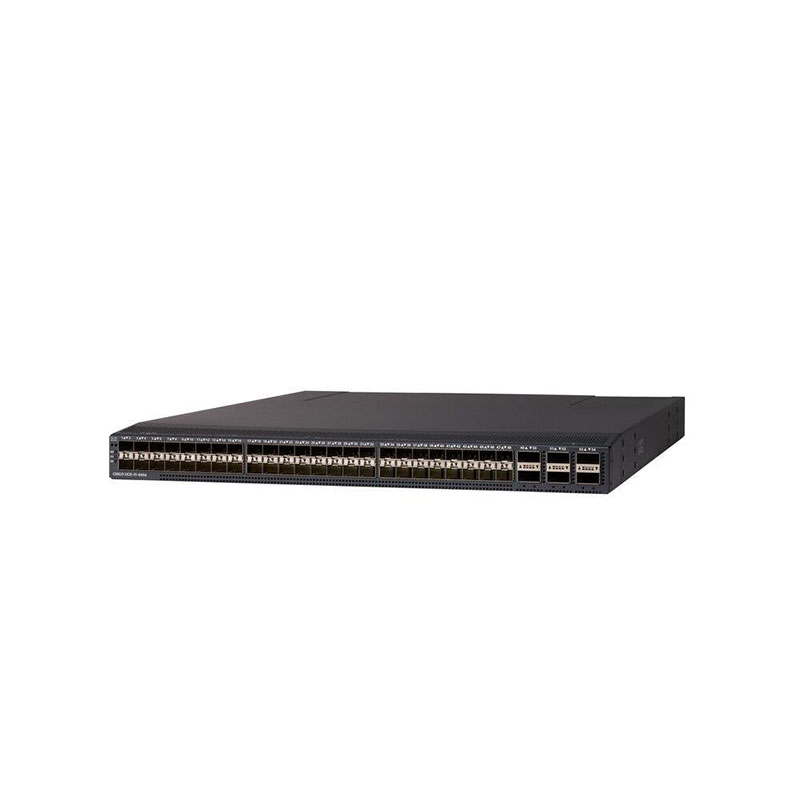

UCS-FI-6454 Cisco Series 54-Ports Fabric Interconnects Switch
Out of stock
UCS-FI-6454 Overview
The Cisco UCS-FI-6454 is a high-performance 54-port Fabric Interconnect switch designed for Cisco Unified Computing System (UCS) environments, providing a unified, high-density connectivity solution for modern data centers. It delivers low-latency, lossless Ethernet and Fibre Channel over Ethernet (FCoE) networking, enabling the convergence of LAN and SAN traffic into a single fabric.Equipped with 54 high-speed ports, the UCS-FI-6454 supports server and storage connectivity at speeds up to 40/10/1 Gbps, depending on configuration and port type. It acts as a central Fabric Interconnect, providing policy-based automation, management, and provisioning for UCS servers.
UCS-FI-6454 Technical Specifications
Cisco Series 54-Ports Fabric Interconnects Switch
Manufacturer: Cisco
Manufacturer Part Number: UCS-FI-6454
Type: Fabric Interconnect / Network Switch
Ports: 54 x 10/25/40/100GbE (QSFP+, SFP28 compatible)
Uplink Ports: QSFP+ / SFP28 for high-speed uplinks
Switching Capacity: 5.12 Tbps
Forwarding Rate: 1.52 Bpps
Layer Support: Layer 2/3
Management: UCS Manager, CLI, SNMP v1/v2/v3
VLAN Support: Up to 4,094 VLANs (802.1Q)
QoS: 802.1p, DSCP, traffic shaping
Security: ACLs, 802.1X authentication, port security
Stacking / Clustering: Supported for high-availability UCS domains
MAC Address Table: 128K entries
Jumbo Frames: Up to 9K bytes
Redundant Power Supplies: Hot-swappable, supported
Cooling: Active redundant fan modules
Form Factor: 2U Rack-mountable
Rack Mount: Supported
Auto MDI/MDIX: Supported
Duplex Mode: Full duplex
Flow Control: IEEE 802.3x compliant
LED Indicators: Link, activity, speed, status
