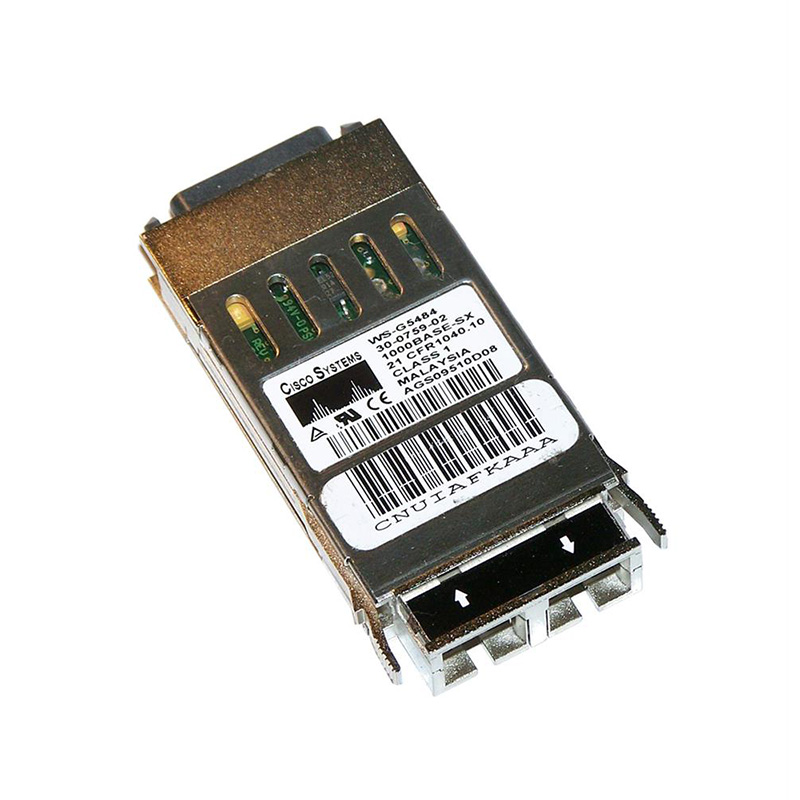

WS-G5484 1Gbps Cisco 1000Base-SX Multi-Mode Fiber Transceiver Module
Out of stock
WS-G5484 Overview
The Cisco WS-G5484 1Gbps is a Gigabit Interface Converter (GBIC) transceiver module designed for short-range 1Gbps optical links. Supporting the 1000Base-SX standard, it operates at an 850nm wavelength and enables reliable connections up to 550 meters over 50/125µm multi-mode fiber. With its duplex SC connector and hot-pluggable design, it offers easy installation and flexibility for upgrading or expanding Gigabit Ethernet networks. This module is widely used in enterprise LANs, campus backbones, and data center environments, providing cost-effective, high-performance optical connectivity with Cisco switches and routers.
WS-G5484 1Gbps Technical Specifications
Cisco 1000Base-SX Multi-Mode Fiber Short Wave 550m 850nm Duplex SC Connector GBIC Transceiver Module
Manufacturer: Cisco
Manufacture Part Number: WS-G5484 1Gbps
Type: GBIC Transceiver Module
Data Rate: 1Gbps
Standard: 1000Base-SX (Gigabit Ethernet)
Wavelength: 850nm (Short Wavelength)
Distance: Up to 550m over MMF (50/125µm), up to 275m on MMF (62.5/125µm)
Fiber Type: Multi-Mode Fiber (MMF)
Connector: Duplex SC
Form Factor: GBIC (Gigabit Interface Converter)
Hot-Pluggable: Yes
Operating Temperature: Standard range
Application: Data centers, enterprise backbones, campus LANs
Compliance: IEEE 802.3z, RoHS
