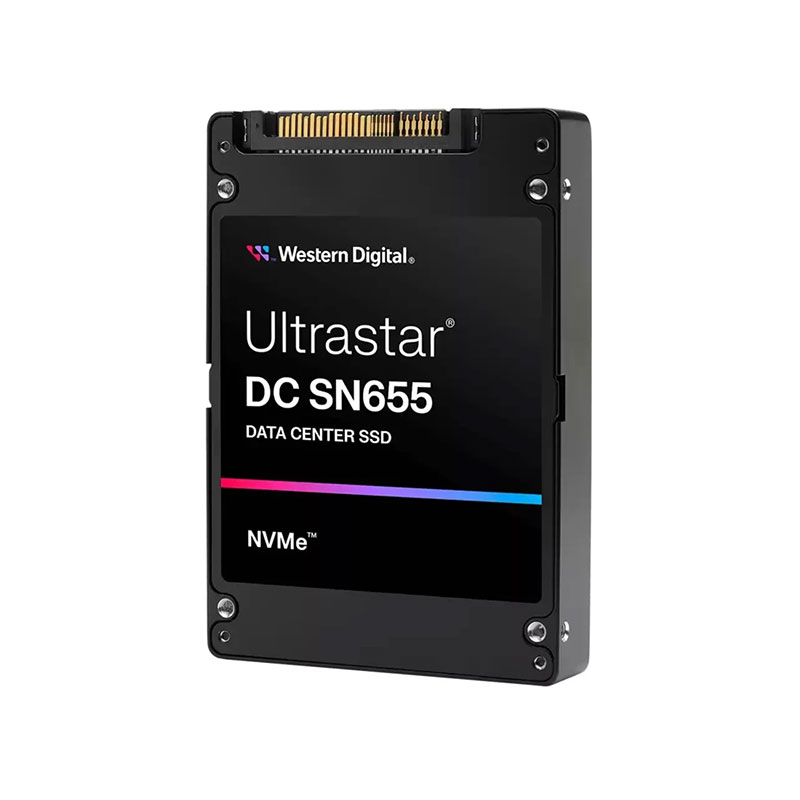

WUS5EA176ESP7E1 Western Digital 7.68TB PCI E NVMe Solid State Drive
WUS5EA176ESP7E1 Overview
The Western Digital Ultrastar DC SN655 7.68 TB is a high‑capacity enterprise NVMe solid‑state drive designed for read‑intensive and mixed server workloads in data centers and storage systems. It uses a U.3 2.5‑inch (15 mm) form factor with a PCIe 4.0 ×4 NVMe 1.4 interface, delivering high throughput and low latency for demanding applications such as cloud services, analytics, virtualization, and large database access. The drive is built with BiCS5 3D TLC NAND flash and is optimized for continuous 24/7 enterprise use, offering sustained sequential read speeds up to approximately 6,800 MB/s and sequential write speeds up to around 2,000 MB/s.
$3,592
WUS5EA176ESP7E1 Technical Specifications
Western Digital Ultrastar DC SN655 7.68TB Triple-Level Cell PCI Express NVMe 4.0 SE U.3 2.5-Inch Solid State Drive
Manufacturer : SANDISK
Model : WUS5EA176ESP7E1
Product Line : Ultrastar
Applications / Environments :
Cloud Datacenters
Scale-out Or Software Defi Ned Solutions
Big Data
No Sql Or Distributed Databases
Ai/ml Deep Learning
Data Archiving
Product Information :
Storage Capacity : 7.68 Tb
Endurance : 1 Dw/d
Maximum Petabytes Written : 14.0
Interface : Pcie Gen4, Nvme 1.4b
Form Factor : U.3 15mm
Security : Base (se)
Drive Performance :
Sequential Read Performance : 6800 Mb/s
Sequential Write Performance : 2000 Mb/s
Random Read : 980k Iops
Random Write : 80k Iops
Read Latency (us) : 100
Write Latency (us) : 15
Power :
Requirement (dc, +/- 10%) : +12v, 3.3v
Operating Modes (typical) : 16w, 18w
Idle (average) : 8w
Environmental :
Operating Temperature (ambient) : 0°c To 70°c
Non-operating Temperature : -40°c To 85°c
