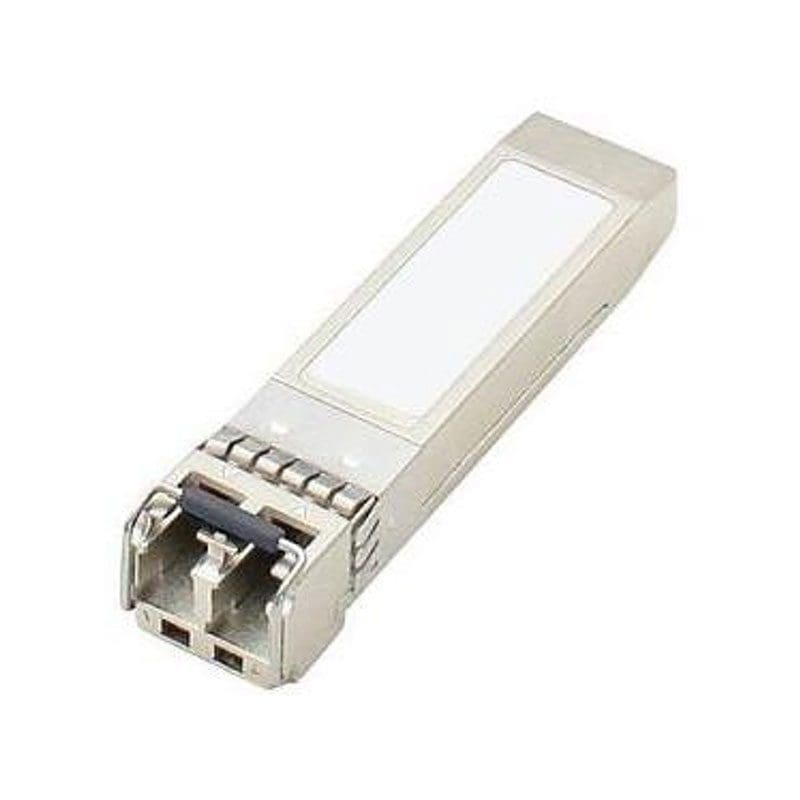

019-078-045 EMC 16Gbps 850nm SFP+ Transceiver Module

019-078-045 Technical Specifications

EMC 16Gbps 850nm Short-Wavelength Fibre Channel SFP+ Transceiver Module

Manufacturer: EMC
Product Type: SFP Transceiver
Technical Information
Connector Type: LC Duplex
Wavelength: 850nm
Maximum Data Rate: 16 Gbps
Maximum Cable Distance: 300 meters over OM3 multimode fiber, 400 meters over OM4 multimode fiber
Transmitter Power: -6.5dBm to 0.5dBm
Receiver Sensitivity: <-11.1dBm
Operating Temperature Range: 0°C to 70°C
Digital Diagnostic Monitoring (DDM): Yes
Data rate: 16Gbps
Wavelength: 850nm
Reach: 300m
Fiber type: Multimode
Connector type: LC
Operating temperature range: 0°C to 70°C
Digital Diagnostic Monitoring (DDM) support: Yes
