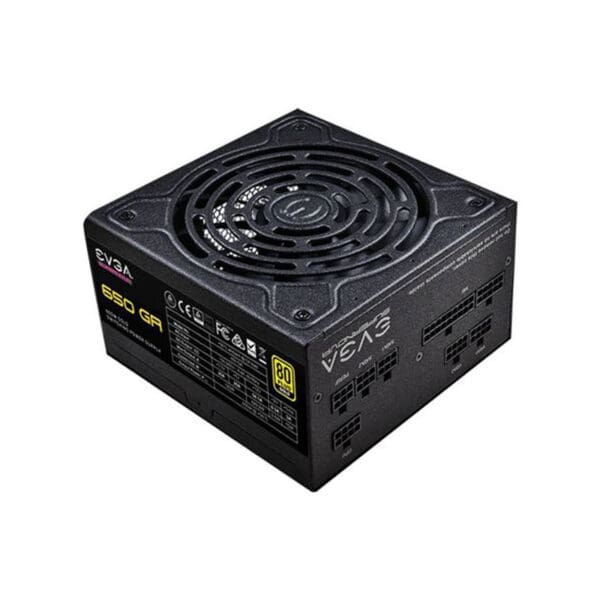

220-GA-0650-X1 EVGA Super NOVA 650 GA Power Supply

220-GA-0650-X1 Technical Specifications

EVGA Super NOVA 650 GA 650-Watts 100-240V AC 8-4A 50-60Hz 80-Plus Gold Fully Modular Eco Mode 24-Pin ATX Power Supply

Wattage: 650 Watts
Form Factor: ATX
Color: Black
LED Color: None
ATi CrossFire: CrossFire Compatible
NVIDIA SLI: SLI Compatible

DRIVE/POWER CONNECTORS

Modular: Fully-Modular
ATX Connector: 20+4-pin
ATX 12V Connector: 1 x 4+4-pin
Graphics Connector: 3 x 6+2-pin
Molex Connector: 4
SATA Connector: 6
Floppy Connector: 1

POWER SPECIFICATIONS

PFC: Active
Rating: 80 PLUS Gold Certified
+12V Rails: 1

PHYSICAL SPECIFICATIONS

Power Supply Depth: 5.91 in. (150.00 mm)
Width: 5.91 in. (150.00 mm)
Height: 3.39 in. (86.00 mm)
Weight: 6.00 lbs. (2.72 kg)
