345-BMDR Dell 480gb M.2 (2280) Pcie 4.0 X4 (nvme) Tlc Enterprise Class SSD
345-BMDR Ovevriew

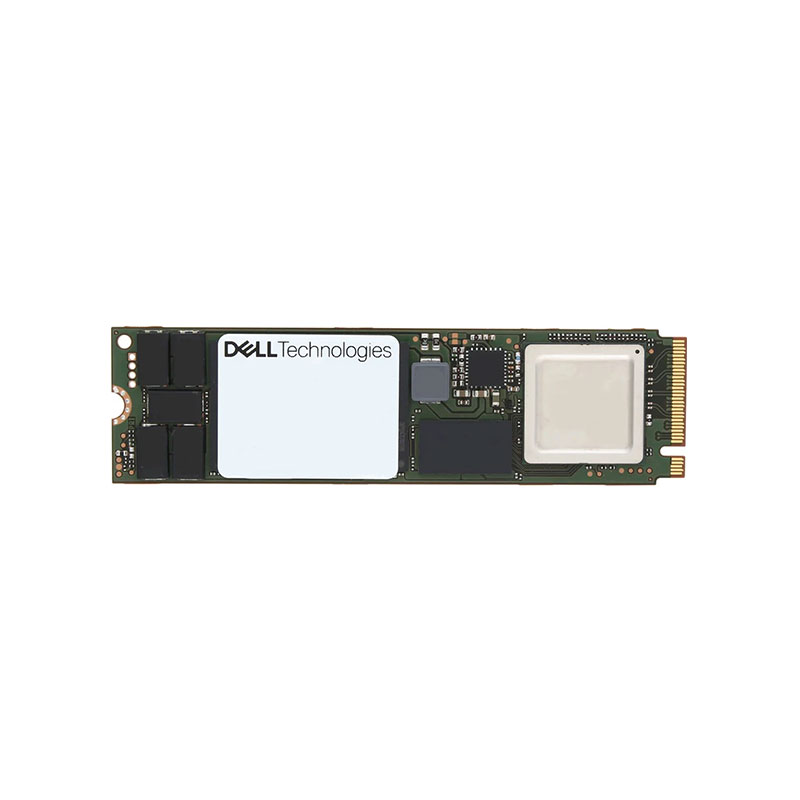

The Dell 345-BMDR 480GB M.2 2280 PCIe 4.0 x4 NVMe Read Intensive TLC Enterprise SSD is a high-performance storage solution designed for Dell PowerEdge servers and enterprise computing environments. Built with advanced 3D TLC NAND technology, this solid state drive delivers fast data access, improved reliability, and efficient storage performance for read-heavy workloads such as virtualization, database applications, analytics, and server operations.
Featuring a compact M.2 2280 form factor and PCIe Gen 4.0 x4 NVMe interface, the Dell 480GB SSD provides significantly faster data transfer speeds compared to traditional SATA-based storage solutions. Its enterprise-class design ensures consistent performance, low latency, and enhanced endurance for demanding 24/7 data center environments.
$1,175
345-BMDR Technical Specifications
Dell 480gb M.2 (2280) Pcie 4.0 X4 (nvme) Read Intensive Tlc Enterprise Class Solid State Drive For DELL Poweredge Server
Manufacturer : DELL
DELL Part Number : 345-BMDR
Technical Specifications :
Type : Solid State Drive – Internal
Endurance Type: Read-intensive Endurance
Capacity : 480 Gb
Nand Flash Memory Type : 176-layer 3d Tlc Nand
Form Factor : M.2 (2280)
Interface : Pcie 4.0 X4 (nvme)
Performance :
Drive Writes Per Day (dwpd) : 1
Endurance (total Bytes Written In Tb) : 800
Seq. Read (mb/s) : 5000 Mb/s
Seq. Write (mb/s) : 700 Mb/s
Random Read : 280,000 Iops
Random Write : 40,000 Iops
70/30 Rand. Read/write (iops) : 50,000
Latency (typ) : 80 (read), 30 (write)
Expansion & Connectivity :
Interfaces : 1 X Pcie 4.0 X4 (nvme)
Compatible Bay : M.2 (2280)
