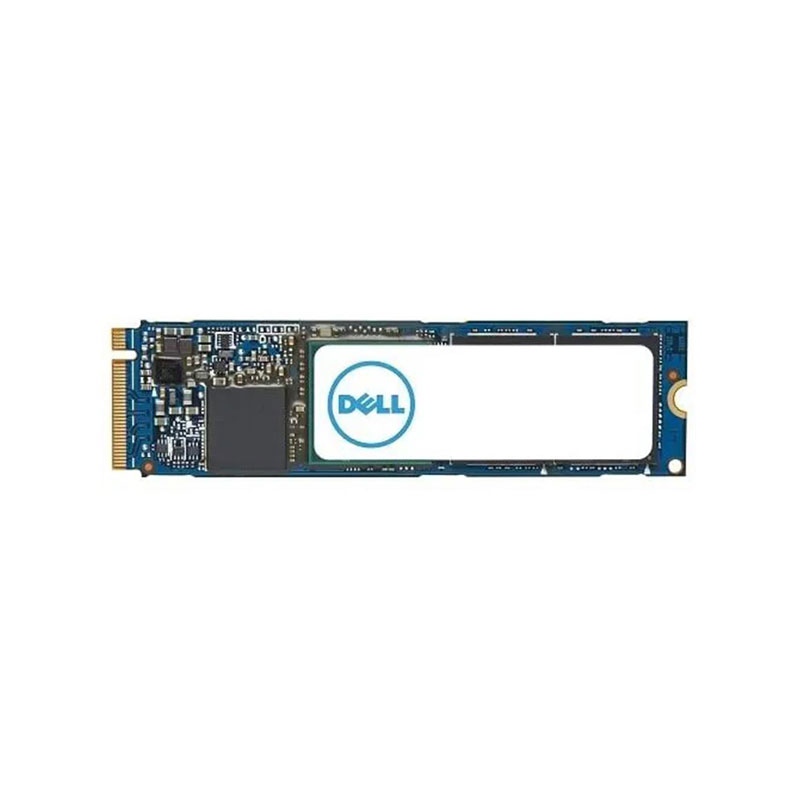

7WF74 Dell 512GB PCI E NVMe 4.0 x4 Solid State Drive (SSD)
7WF74 Overview
The Dell 7WF74 512GB PCI Express NVMe 4.0 x4 M.2 2280 Solid State Drive (SSD) is a high-speed internal storage solution designed to dramatically improve system responsiveness and data transfer performance in compatible laptops, desktops, and workstations. It uses the PCIe 4.0 x4 interface with NVMe protocol, which provides substantially faster sequential read and write speeds—in many cases up to around 6000 MB/s read and 4000 MB/s write, depending on the host system and workload—compared with older SATA or PCIe 3.0 drives, resulting in quicker boot times, faster app loading, and smoother large file handling.
Built in the standard M.2 2280 form factor.
$149
7WF74 Technical Specifications
Dell 512GB PCI Express NVMe 4.0 x4 M.2 2280 Solid State Drive (SSD)
Model number: 7WF74
Brand: Dell
Capacity: 512 GB
Drive type: Internal Solid State Drive
Form factor: M.2 2280
Interface
Interface type: PCI Express (PCIe)
PCIe generation: PCIe 4.0
PCIe lanes: x4
Protocol: NVMe
Connector: M.2 (M-Key)
Backwards compatible with PCIe 3.0
Performance
Max sequential read speed: up to 6000 MB/s
Max sequential write speed: up to 4000 MB/s
Random read performance: up to 750,000 IOPS
Random write performance: up to 630,000 IOPS
Memory and Cache
NAND flash type: 3D TLC NAND
Cache: DRAM with nCache SLC caching
Reliability
Endurance rating: around 300 TBW (Total Bytes Written)
Life expectancy (MTTF): around 1.75 million hours
Shock resistance: 1500 G
