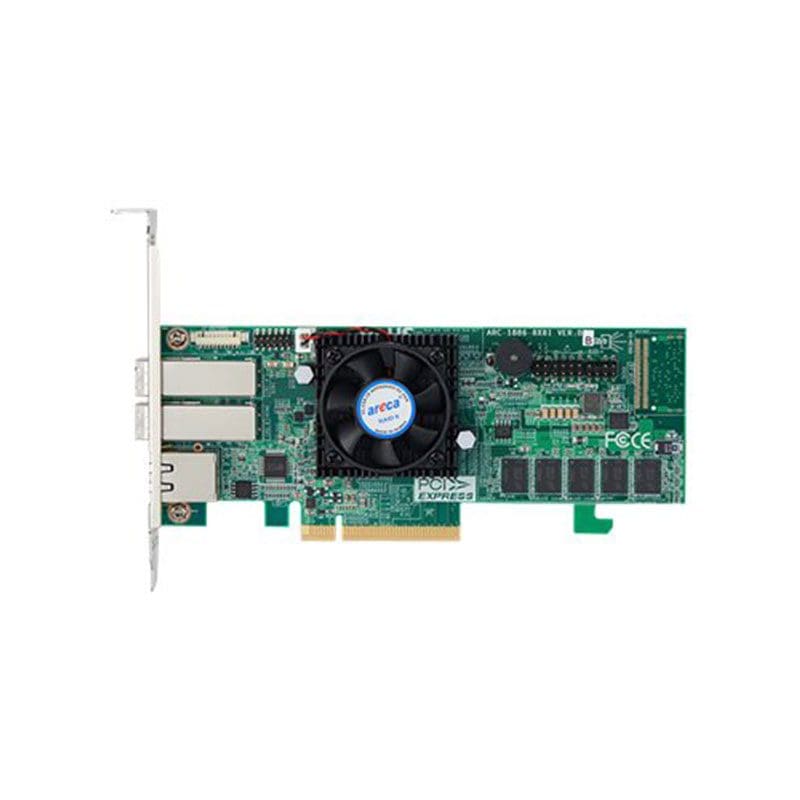

ARC-1886-8X Areca Storage Controller (RAID) SATA 6Gb/s 12Gb/s PCIe

ARC-1886-8X Technical Specifications

Areca Storage Controller (RAID) SATA 6Gb/s / SAS 12Gb/s PCIe 4.0 x8

Brand : Areca
Manufacturer Part Number : ARC-1886-8X
Performance
Device Type Storage controller (RAID)
Host Bus PCIe 4.0 x8
Storage Controller
Interface SATA 6Gb/s / SAS 12Gb/s
Data Transfer Rate 12 Gbit/s
Buffer Size 8 GB
Supported Devices Hard drive, disk array (RAID), solid state drive
Channel Qty 8
Max Storage Devices Qty 512
RAID Level RAID 0, RAID 1, RAID 3, RAID 5, RAID 6, RAID 10, RAID 30, RAID 50, JBOD, RAID 1E, RAID 60
Processor ARM A15 1.6 GHz
Expansion / Connectivity
Interfaces 2 x SATA 6Gb/s / SAS 12Gb/s – 4 x Mini SAS HD (SFF-8644)
Miscellaneous
Compliant Standards FCC, RoHS
Power
Power Consumption Operational 12 Watt
Software / System Requirements
OS Required Apple MacOS, Linux, FreeBSD, Citrix XenServer, Windows 10, Microsoft Windows Server 2016, Microsoft Windows Server 2019, unRAID
Dimensions & Weight
Depth 6.6 in
Height 2.5 in
Environmental Parameters
Min Operating Temperature 41 °F
Max Operating Temperature 140 °F
Humidity Range Operating 15 – 80% (non-condensing)
