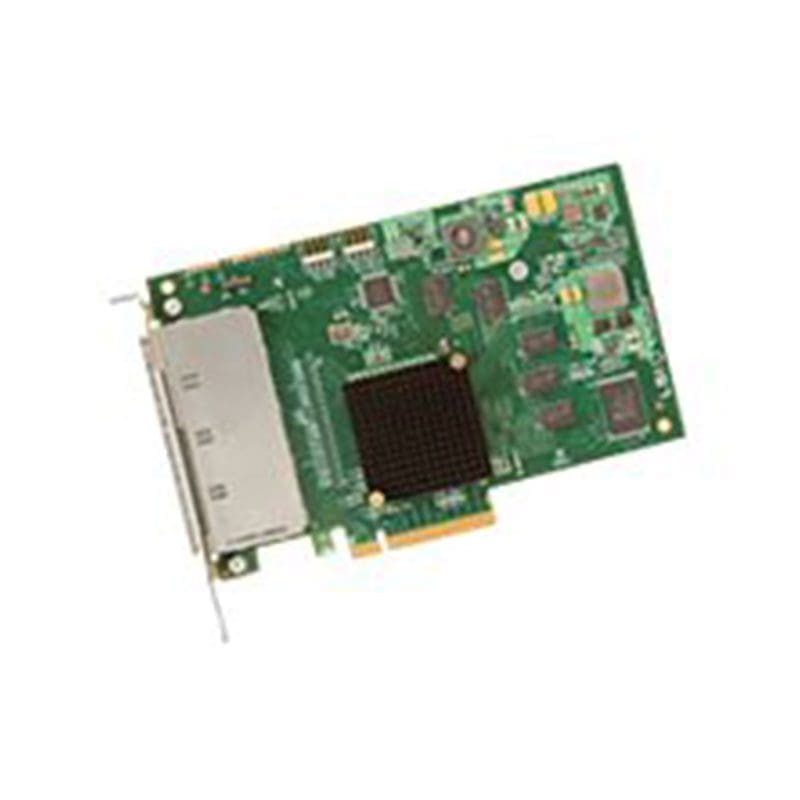

H5-25379-00 LSI Logic SAS Storage Controller SATA 6Gb/s / SAS 6Gb/s

H5-25379-00 Technical Specifications

LSI Logic SAS 9201-16e Storage Controller SATA 6Gb/s / SAS 6Gb/s PCIe 2.0 x8

Brand : LSI Logic
Manufacturer Part Number : H5-25379-00
Device Type Storage controller – plug-in card
Host Bus PCIe 2.0 x8
Storage Controller
Interface SATA 6Gb/s / SAS 6Gb/s
Data Transfer Rate 6 Gbit/s
Supported Devices Hard drive, tape drive, solid state drive
Channel Qty 16
Max Storage Devices Qty 512
RAID Level JBOD
Processor PowerPC 440 800 MHz
Expansion / Connectivity
Interfaces 4 x SATA 6Gb/s / SAS 6Gb/s – 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088) (external)
Compatible Slots 1 x PCI Express 2.0 x8 – half-length, full-height
