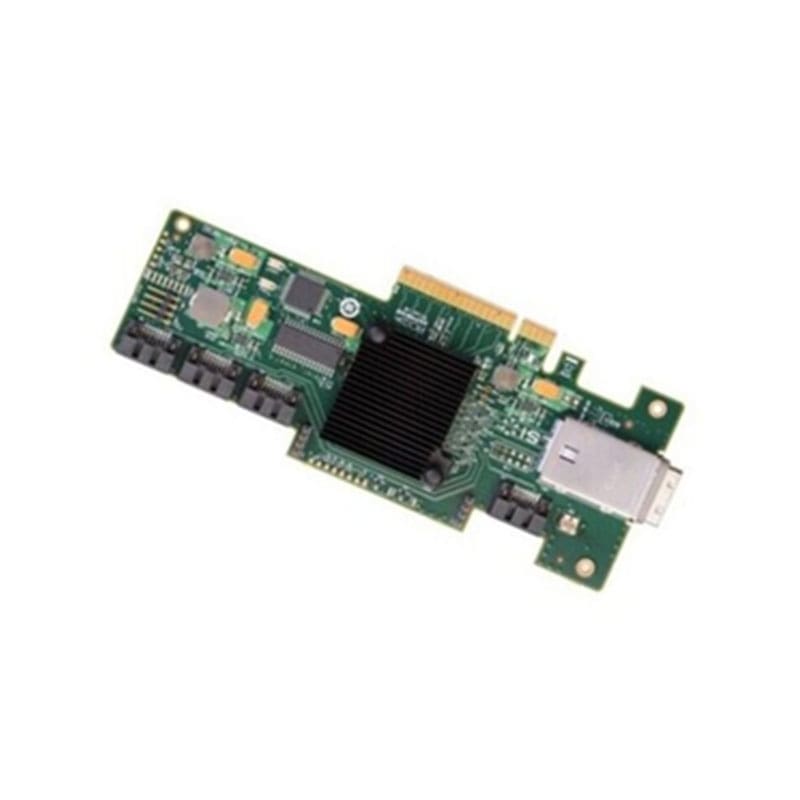

H5-25434-00 LSI Logic 6GBPS 4int 4ext Port PCI-E 3.0 SATA
H5-25434-00 Overview
The LSI Logic H5-25434-00 is a high-performance host bus adapter designed to provide a reliable and efficient connection between a server and its storage devices. This adapter supports both SATA and SAS protocols, making it a versatile solution for a wide range of storage configurations. In this article, we will take a closer look at the features of the LSI Logic and explain how it can be used to improve the performance and reliability of a server’s storage subsystem.
The LSI Logic is a PCIe 3.0 host bus adapter that provides four internal and four external ports for SATA and SAS devices.
$160
H5-25434-00 Technical Specifications
LSI Logic 6GBPS 4int 4ext Port PCI-E 3.0 SATA SAS Host Bus Adapter with Short Bracket
Manufacturer: LSI Logic
Part Number or SKU# H5-25434-00
Product Type : Controller
Product Name : SAS/SATA
Technical Specifications
Host Bus Type : X8 Lane PCI Express 3.0
Data Transfer Rates : 6GBPS SAS2.1 Compliant
Devices Supported : 256 Non-raid Sas/sata Devices
External Connectors : 1 Mini-SAS Sff8088
Internal Connectors : 1 Mini-SAS Sff8087
Ports : 4internal
