J9851A HP Aruba 5412R Zl2 12-Slot Switch Chassis
Out of stock
J9851A Overview

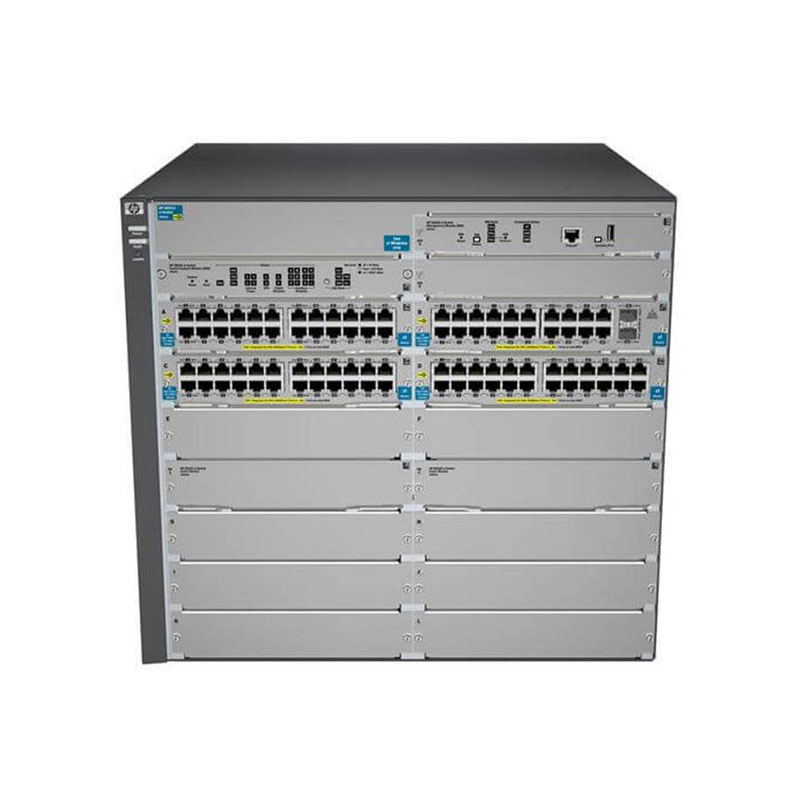

The HP Aruba 5412R zl2 (J9851A) is a high-performance modular switch chassis designed for enterprise core and aggregation networks requiring flexibility, scalability, and advanced features. This chassis provides 12 modular slots, allowing administrators to populate it with a combination of line cards to meet varying network requirements, including high-density Gigabit and 10 Gigabit Ethernet ports, PoE support, and fiber connectivity.Built on the ArubaOS-Switch (formerly ProCurve) architecture, the 5412R zl2 supports Layer 2 and Layer 3 functionality, including advanced routing protocols, VLANs, link aggregation, Quality of Service (QoS), multicast routing, and ACLs, making it suitable for converged voice, video, and data networks. The chassis also supports redundant supervisor modules and power supplies, providing high availability and resiliency for mission-critical deployments.
J9851A Technical Specifications
HP Aruba 5412R Zl2 12-Slot Switch Chassis
Manufacturer: HP
Manufacturer Part Number: J9851A
Type: Modular Chassis Switch
Slots: 12 full-height slots for line cards
Layer: Layer 2 / Layer 3 switching
Management: Web interface, CLI, SNMP, ArubaOS-Switch / ArubaOS-CX
VLAN: IEEE 802.1Q VLAN tagging
QoS: Advanced QoS per slot and port
Security: ACLs, 802.1X authentication, role-based access control
Switching Capacity: Up to 1.44 Tbps (with full line card population)
Forwarding Rate: Up to 1,071 Mpps (with full line card population)
Redundant Power: Supports dual redundant AC or DC PSUs
Hot Swap: Supported for power supplies and fan trays
Cooling: Front-to-back or back-to-front airflow, redundant fan modules
Form Factor: 19-inch rack-mountable chassis
LEDs: System, power, status, alarms per slot
STP: STP, RSTP, MSTP supported
