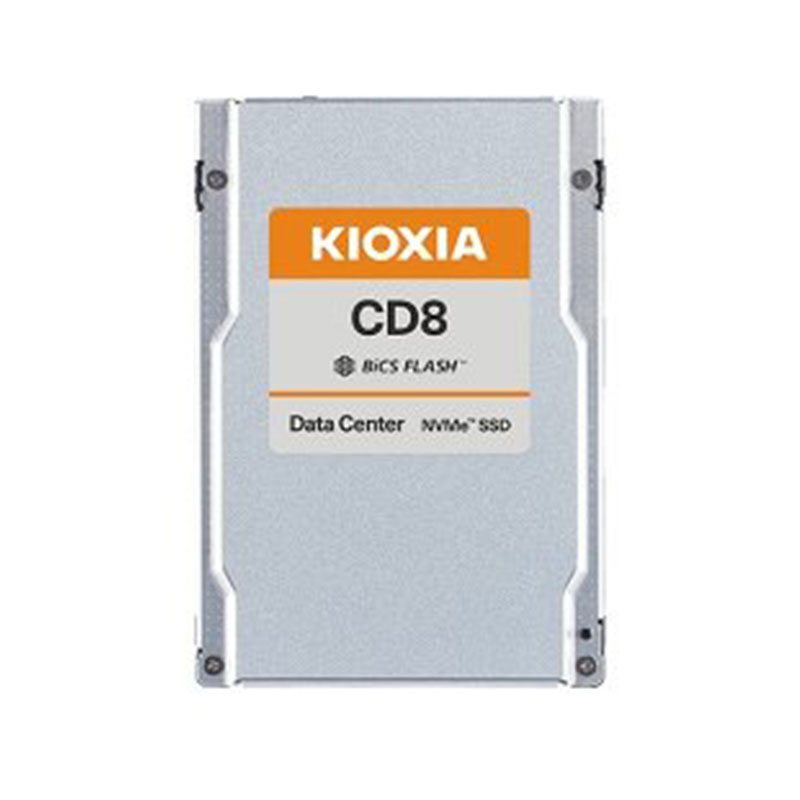

KCD8XRUG7T68 Kioxia CD8-R Series 7.68TB TLC PCIe NVMe 4.0 2.5-Inch SSD
KCD8XRUG7T68 Overview
The Kioxia CD8-R 7.68TB (Model: KCD8XRUG7T68) is a high-performance, data center-class NVMe SSD designed specifically for read-intensive applications. As part of the CD8-R series, this drive leverages the PCIe Gen4 x4 interface to provide massive throughput and significantly lower latency compared to legacy SATA and SAS storage. Built with Kioxia’s advanced BiCS FLASH™ 3D TLC technology, the CD8-R is optimized for cloud computing, content delivery networks (CDNs), and virtualization environments where high-speed data access and storage density are critical.
$2,699
KCD8XRUG7T68 Technical Specifications
Kioxia CD8-R Series 7.68TB TLC PCIe NVMe 4.0 x4 Read Intensive 2.5-Inch Solid State Drive
Manufacturer: Kioxia
Manufacture Part Number: KCD8XRUG7T68
Series: CD8-R (Read Intensive)
Storage Capacity: 7.68 Terabytes (7.68TB)
Interface Type: PCIe Gen4 x4, NVMe 1.4
Form Factor: 2.5-inch (15mm Z-height)
Connector Type: U.3 (Compatible with U.2 slots)
NAND Flash Type: BiCS FLASH™ 3D TLC
Performance Metrics
Sequential Read Speed: Up to 7,200 MB/s
Sequential Write Speed: Up to 6,000 MB/s
Random Read (4KB): Up to 1,250,000 IOPS
Random Write (4KB): Up to 200,000 IOPS
Latency (Read/Write): 75 µs / 10 µs (Typical)
Reliability & Endurance
Endurance (DWPD): 1 Drive Write Per Day
Total Bytes Written (TBW): 14,016 TB
End-to-End Data Protection: Yes
Power Loss Protection (PLP): Yes
Power & Environmental
Idle Power Consumption: 5 Watts (Typical)
Operating Temperature: 0°C to 70°C
