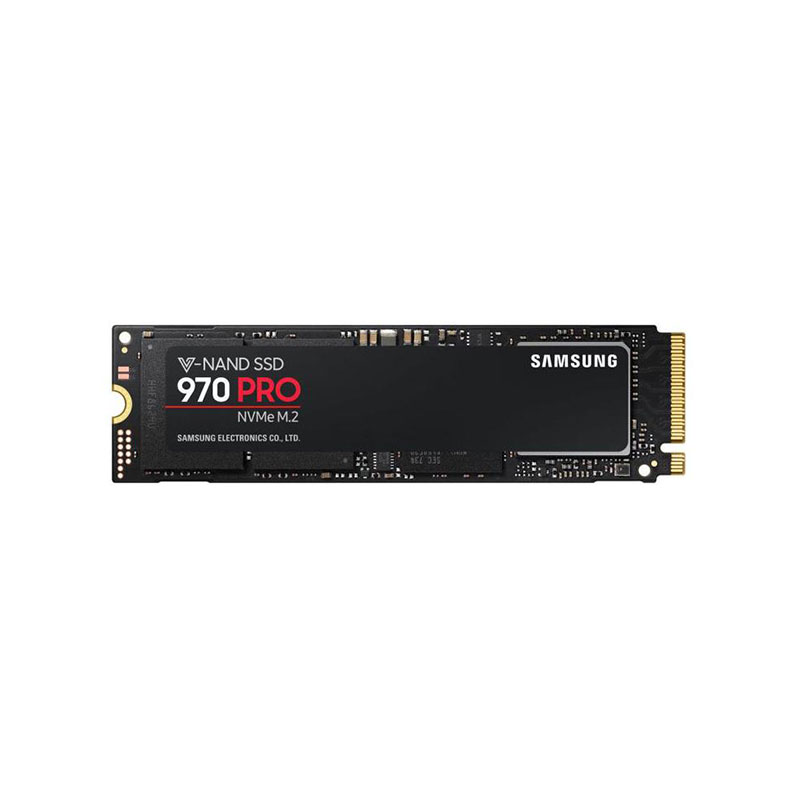

MZ-V7P512 Samsung 512GB SSD 970 PRO PCI-E
Out of stock
MZ-V7P512 Overview
The M.2 interface, also known as the Next Generation Form Factor (NGFF), is a small, compact form factor primarily designed for space-constrained computing devices. It has gained popularity for its versatility, accommodating various applications such as storage, Wi-Fi, and Bluetooth modules. M.2 drives come in different sizes, and the 2280 designation in the MZ-V7P512 indicates its dimensions: 22mm width and 80mm length.
NVMe, or Non-Volatile Memory Express, is a protocol designed explicitly for modern storage devices like SSDs. Unlike traditional storage protocols, NVMe leverages the PCIe (Peripheral Component Interconnect Express) interface, providing a faster and more efficient communication pathway between the storage device and the rest of the computer system.
MZ-V7P512 Technical Specifications
Samsung 512GB Solid State Drive 970 PRO M.2 2280 PCI-Express 3.0 X4 (NVME)
Manufacturer: Samsung
Model Number or SKU# MZ-V7P512
Product Type: Solid State Drive
Product Name: 512GB
Technical Information of 512GB Solid State Drive
Capacity: 512GB
Compatible Bay: M.2 2280
Interfaces: PCIe 3.0 x4 (NVMe) – M.2 Card
Hardware Encryption: Yes
Encryption Algorithm: 256-bit AES
NAND Flash Memory Type: 3D Multi-level Cell (MLC)
Performance
SSD Endurance: 600 TB
Internal Data Rate: 3500 Mbps (read)
Internal Data Rate: 2300 Mbps (write)
Maximum 4kb Random Write: 500K Iops
Maximum 4kb Random Read: 370k Iops
