MZILS7T6HMLS-000V3 Technical Specifications

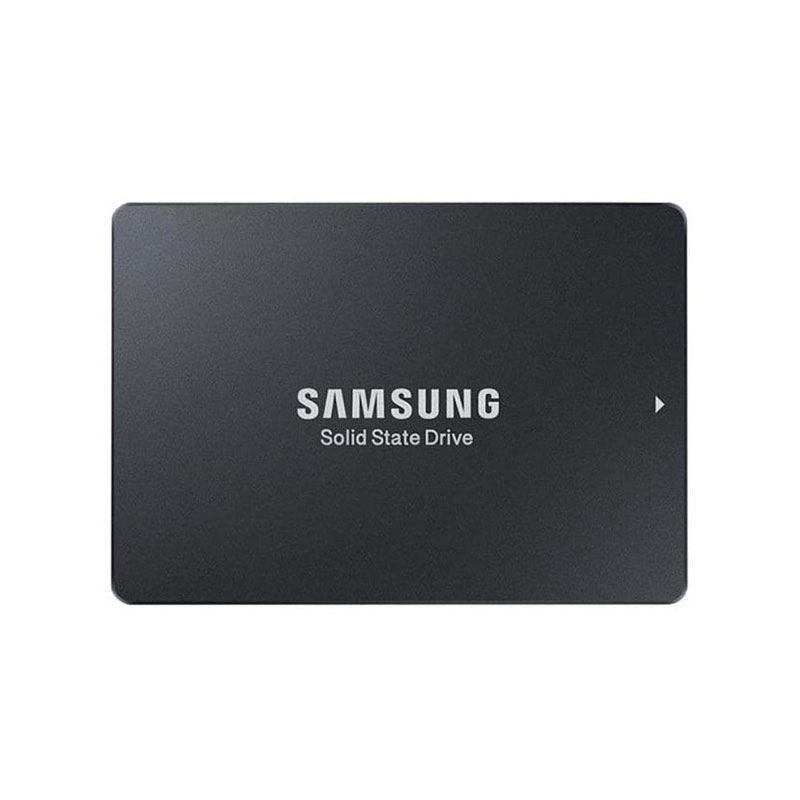

Samsung 7.68Terabytes (TB) Serial-Attached SCSI (SAS) Pm1633a 12Gigabytes Per Second (GBPS) 2.5inch Internal Solid State Drive
Manufacturer: Samsung
Part Number or SKU# MZILS7T6HMLS-000V3
Interface: SAS-12GBPS
Device Type: Solid State Drive (SSD)
Technical Information
Capacity: 7.68TB
Form Factor: 2.5 Inch
Mtbf: 2,000,000 Hours
Endurance: 1 Dwpd
Performance for SAS-12GBPS SSD
Random Read: Up To 195,000 Iops
Random Write: Up To 31,000 Iops
Sequential Read: Up To 1,200 MBPS
Sequential Write: Up To 900 MBPS
Power Consumption SSD
power active: 11 Watt
Power idle: 4.5 Watt
Internal Data Rate: 1250 MBPS (read)/1250 MBPS (write)
Expansion & Connectivity
Interfaces: 1 X Sas 12 Gb/s
Compatible Bay: 2.5
24×7 Operation: Yes
Dimension and Weight 2.5 Inch
Height: 0.63 inch
Width: 3.10 inch
Depth: 5.45 inch
