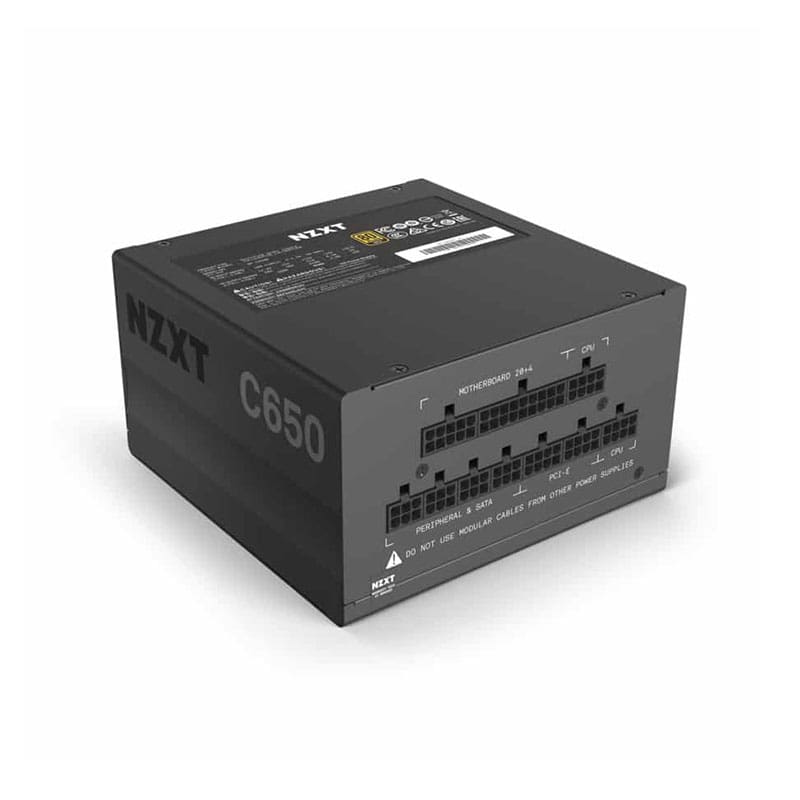

NP-C650M-US NZXT C650 650W Power Supply

NP-C650M-US Technical Specifications

NZXT C650 650W 80 PLUS Gold Modular Power Supply

Brand: NZXT
Series: C650
Model: NP-C650M-US
Type: ATX12V v2.4 / EPS12V v2.92
Maximum Power: 650 W
Fans: 1 x 120mm Fluid Dynamic Bearing Fan
PFC: Active
Main Connector: 24Pin

+12V Rails: Single
PCI-Express Connector: 4 x 6+2-Pin
SATA Power Connector: 8
Max PSU Length: 150 mm
Modular: Full Modular
Energy-Efficient: 80 PLUS GOLD Certified
Over Voltage Protection: Yes
Input Voltage: 100 – 240 V
Input Frequency Range: 50/60 Hz
Input Current: 9 – 4.5A
Output: +3.3V@20A, +5V@20A, +12V@54A, -12V@0.3A, +5VSB@3A
MTBF: >100,000 Hours
