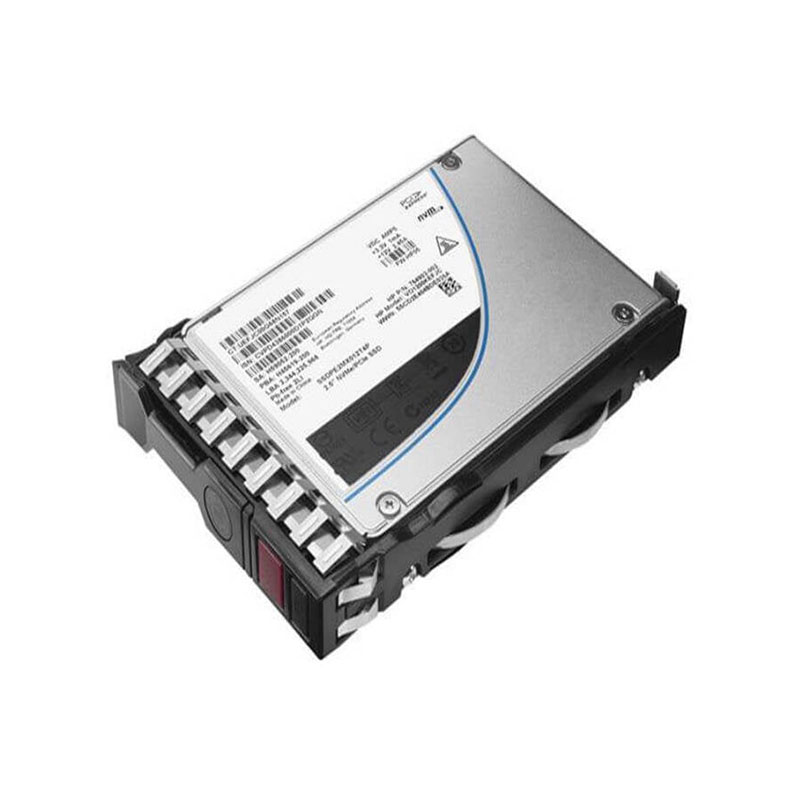

P20005-B21 HPE 960GB PCI Express 4.0 x4 NVMe 2.5-inch (SSD)
P20005-B21 Overview
The HPE P20005-B21 960GB PCIe 4.0 x4 NVMe Read Intensive U.3 2.5-inch SSD is a next-generation, enterprise-class solid-state drive engineered to deliver ultra-fast performance, high reliability, and energy efficiency for HPE ProLiant Gen10 Plus and Gen11 servers. Built on the PCI Express 4.0 x4 NVMe interface, this SSD provides significantly higher throughput and lower latency compared to traditional SATA-based drives, ensuring superior performance for read-intensive workloads.
With a 960GB capacity, it is ideal for boot drives, virtualization, analytics, cloud applications, and database queries that require rapid data access and consistent performance. The U.3 2.5-inch form factor ensures compatibility with modern HPE server architectures, offering flexible integration and easy scalability.
$840
P20005-B21 Technical Specifications
HPE 960GB PCI Express 4.0 x4 NVMe Read Intensive U.3 2.5-inch Internal Solid State Drive (SSD)
Brand: HPE
MPN: P20005-B21
General
Device Type: Solid State Drive – Hot-Swap
Capacity: 960 GB
Form Factor: 2.5 inch SFF
Interface: NVMe U.3 PCIe 4.0
Plug Type: Hot Pluggable
Carrier Type: Smart Carrier NVMe (SCN)
Workload Type: Read Intensive
Bundled with: HPE Smart Carrier NVMe (SCN)
Performance
30 Days Writes: 1712
Endurance DWPD (Drive Writes Per Day): 1
Random Read IOPS (4KiB, Q=16): 175000
Random Write IOPS (4KiB, Q=16): 50000
Expansion & Connectivity
Interfaces: 1 x PCIe NVMe
Compatible Bay: 2.5″ SFF
Power Consumption
Maximum Power: 6.00 Watts
Product Dimensions & Weight
Height: 5.75 inch (14.61 cm)
Width: 8.63 inch (21.92 cm)
Depth: 9.00 inch (22.86 cm)
Weight: 1.508 lbs (0.68 kg)
